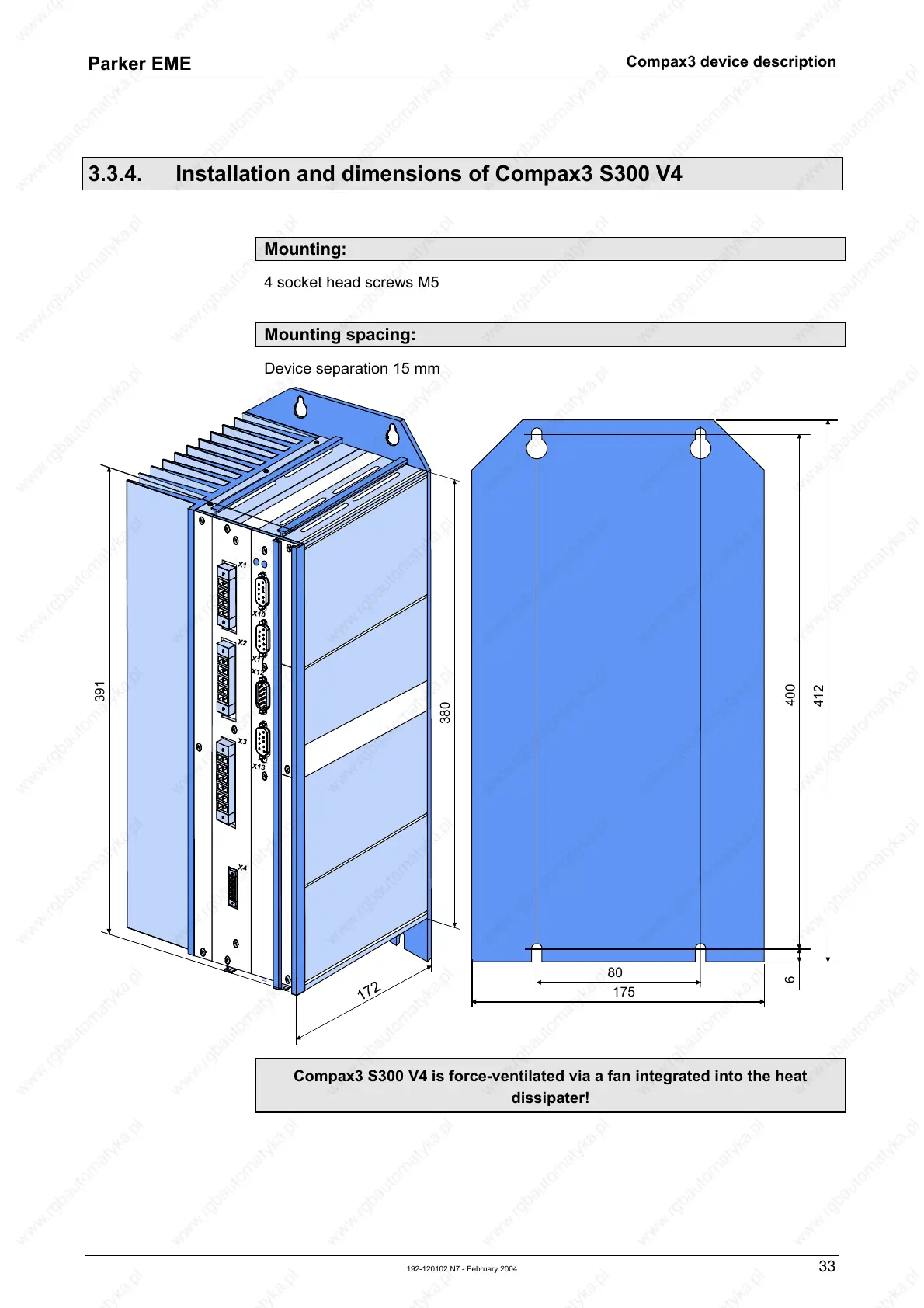

3.3.4. Installation and dimensions of Compax3 S300 V4
Mounting:
4 socket head screws M5
Mounting spacing:
Device separation 15 mm
3
8
0
4
0
0
4
1
2
3
9
1
175
80
6
Compax3 S300 V4 is force-ventilated via a fan integrated into the heat
dissipater!

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
