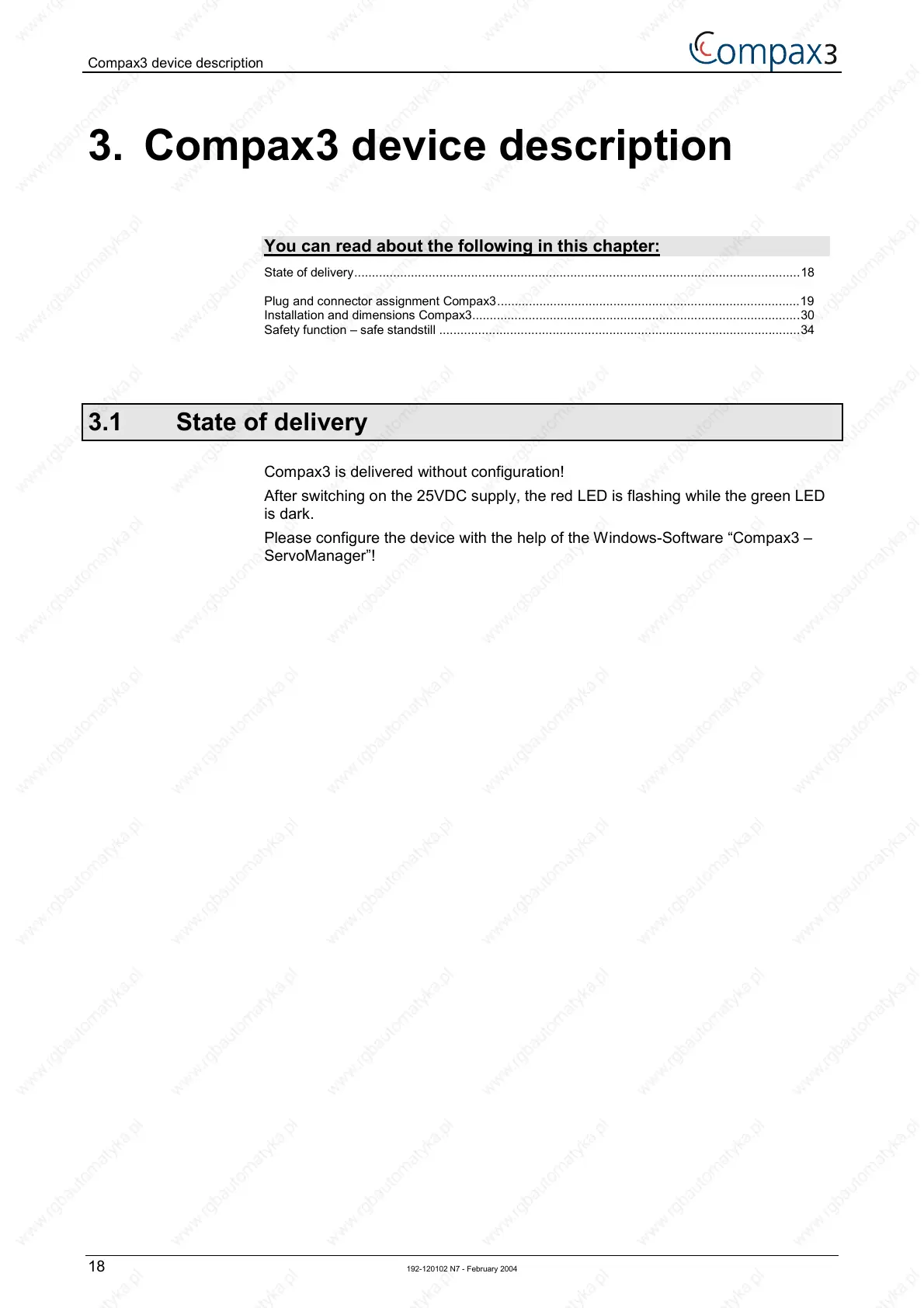

Compax3 device description

18 192-120102 N7 - February 2004

You can read about the following in this chapter:

State of delivery..............................................................................................................................18

Plug and connector assignment Compax3......................................................................................19

Installation and dimensions Compax3.............................................................................................30

Safety function – safe standstill ......................................................................................................34

3.1 State of delivery

Compax3 is delivered without configuration!

After switching on the 25VDC supply, the red LED is flashing while the green LED

is dark.

Please configure the device with the help of the Windows-Software “Compax3 –

ServoManager”!

3. Compax3 device description
