Parker EME
Compax3 device description
192-120102 N7 - February 2004 31

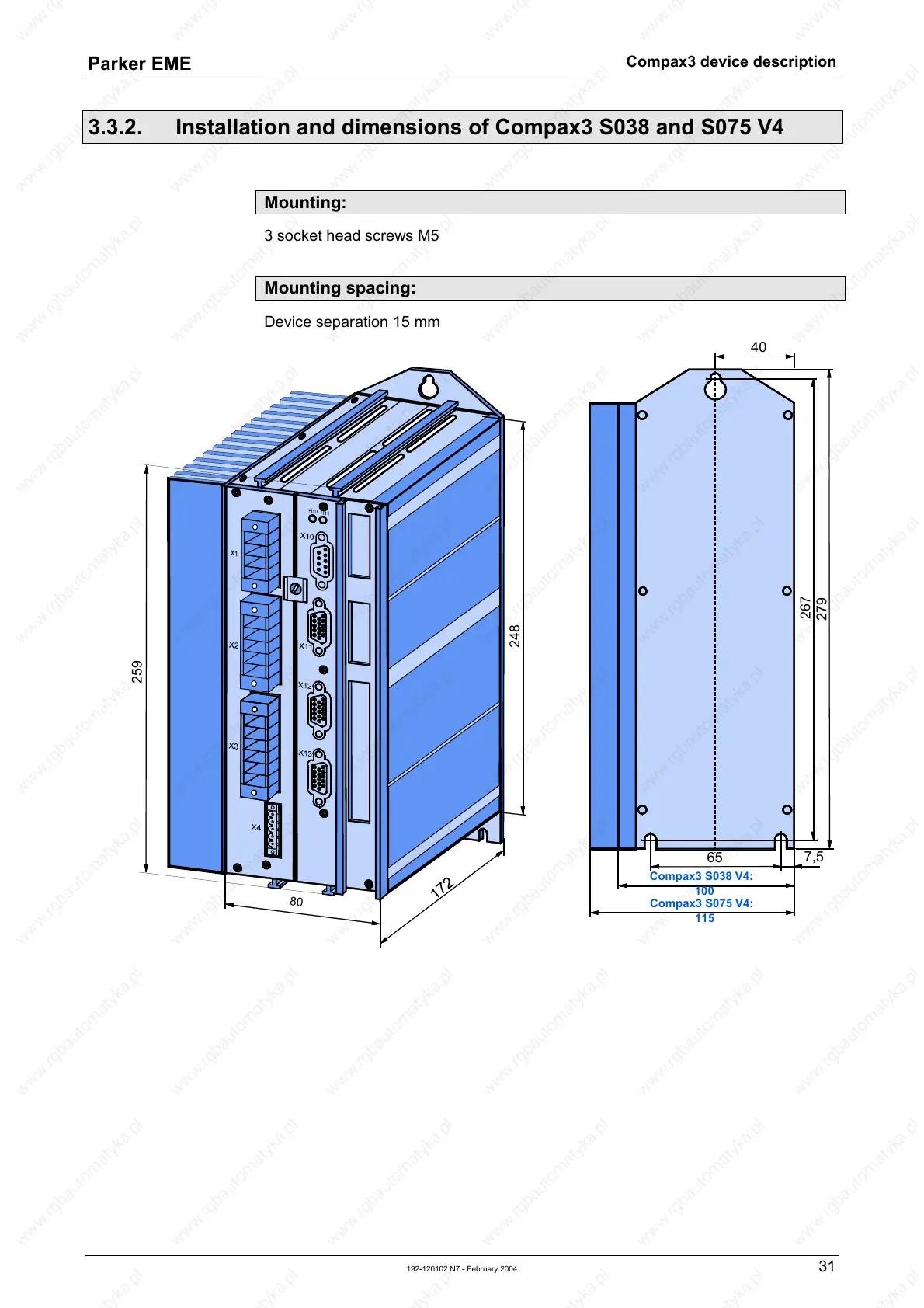

3.3.2. Installation and dimensions of Compax3 S038 and S075 V4
Mounting:
3 socket head screws M5
Mounting spacing:
Device separation 15 mm
2
4
8
8
0
2
5
9
2
6
7
2
7
9
65
Compax3 S038 V4:
100
Compax3 S075 V4:
115
7,5
40
