Technical Data
52 192-120102 N7 - February 2004

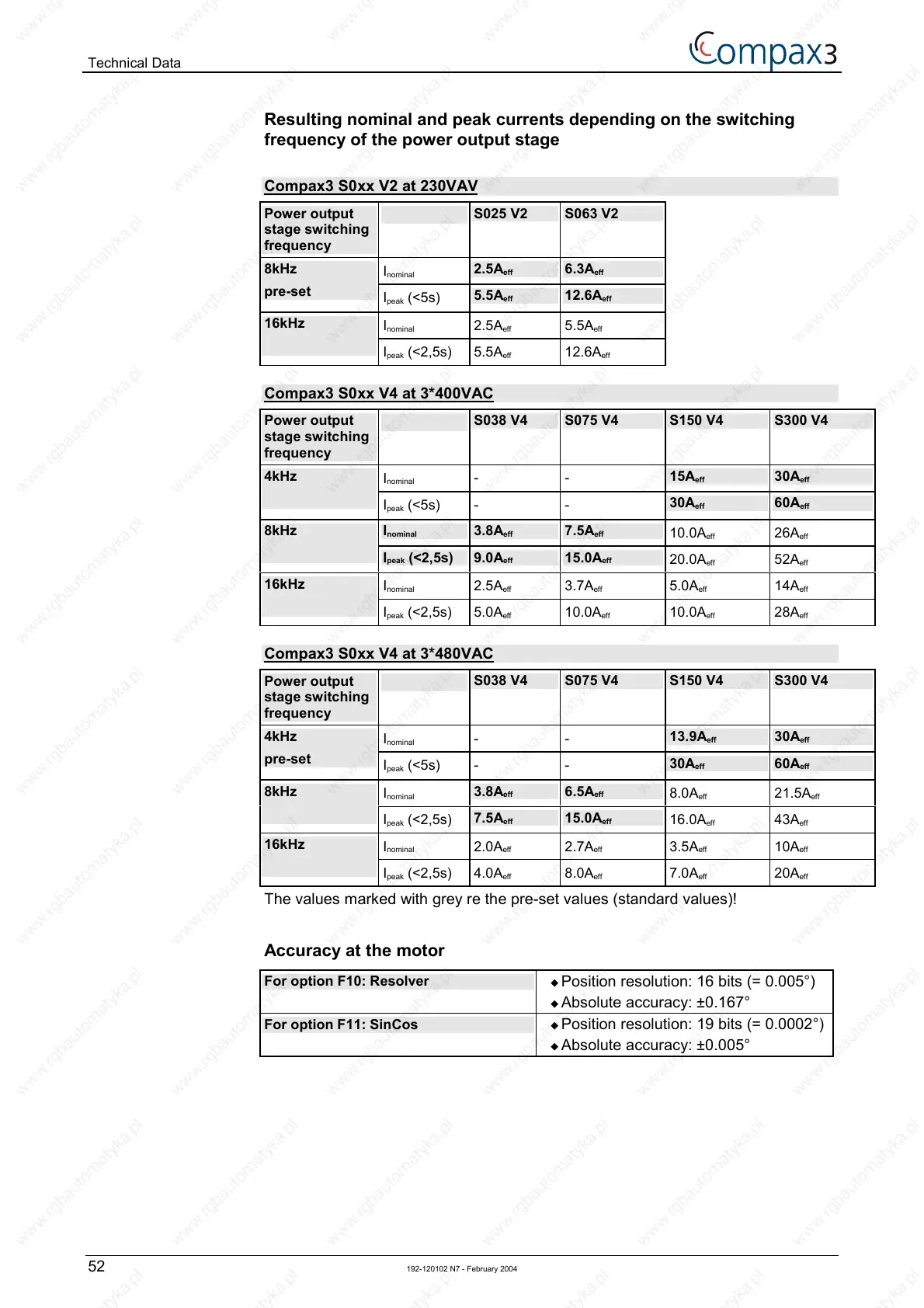

Resulting nominal and peak currents depending on the switching
frequency of the power output stage
Compax3 S0xx V2 at 230VAV
Power output
stage switching
frequency
S025 V2 S063 V2
I
nominal
2.5A
eff
6.3A
eff
8kHz
pre-set
I
peak
(<5s)
5.5A
eff
12.6A
eff
I
nominal
2.5A
eff
5.5A
eff
16kHz
I
peak
(<2,5s) 5.5A
eff
12.6A
eff
Compax3 S0xx V4 at 3*400VAC
Power output
stage switching
frequency
S038 V4 S075 V4 S150 V4 S300 V4
I
nominal
--
15A
eff
30A
eff
4kHz
I
peak
(<5s)
--
30A
eff
60A
eff
I
nominal
3.8A
eff
7.5A
eff
10.0A
eff
26A
eff
8kHz
I
peak
(<2,5s) 9.0A
eff
15.0A
eff
20.0A
eff
52A
eff
I
nominal
2.5A
eff
3.7A
eff
5.0A
eff
14A
eff
16kHz
I
peak
(<2,5s) 5.0A
eff
10.0A
eff
10.0A
eff
28A
eff
Compax3 S0xx V4 at 3*480VAC
Power output
stage switching
frequency
S038 V4 S075 V4 S150 V4 S300 V4
I
nominal
--
13.9A
eff
30A
eff
4kHz
pre-set
I
peak
(<5s)
--
30A
eff
60A
eff
I
nominal
3.8A
eff
6.5A
eff
8.0A
eff
21.5A
eff
8kHz
I
peak
(<2,5s)
7.5A
eff
15.0A
eff
16.0A
eff
43A
eff
I
nominal
2.0A
eff
2.7A
eff
3.5A
eff
10A
eff
16kHz
I
peak
(<2,5s) 4.0A
eff
8.0A
eff
7.0A
eff
20A
eff
The values marked with grey re the pre-set values (standard values)!
Accuracy at the motor
For option F10: Resolver
! Position resolution: 16 bits (= 0.005°)
! Absolute accuracy: ±0.167°
For option F11: SinCos
! Position resolution: 19 bits (= 0.0002°)
! Absolute accuracy: ±0.005°
