DOWN KEY
This key is used to:
1. Decrease the displayed parameter value.
2. Decrease setpoint.
3. With the SCROLL key to view the current Hardware Definition Code
setting.
4. With the UP key to reset MAX/MIN HOLD and TIME EXCEED.
3.1.3 DISPLAYS
During normal operation, the upper display shows the value of the process
variable. The lower display shows the setpoint value. If configured in Set-
Up mode, the upper display can show the setpoint value and the lower
display is blank. During configuration the upper display shows the param-
eter setting. The lower display shows the parameter code for the currently
selected parameter.
3.1.3.1 DISPLAY SEQUENCE
During normal operating conditions, when the SCROLL key is pressed,
"ULoc" will appear in the lower display and "0" in the upper display. To gain
acess to the Program and Set-Up modes, enter the correct code to "unlock"
accessability to these modes, then press the SCROLL key and "CtrL" will
appear in the display. Press the SCROLL key to the Program and/or Set-
Up modes.
If any alarms have been programmed and the alarm(s) is/are energized,
the display sequence is as follows: Press the SCROLL key and the Alarm
Status Display, code "ALSt" appears in the lower display. Press the
SCROLL key again and the upper display will then be showing the alarm

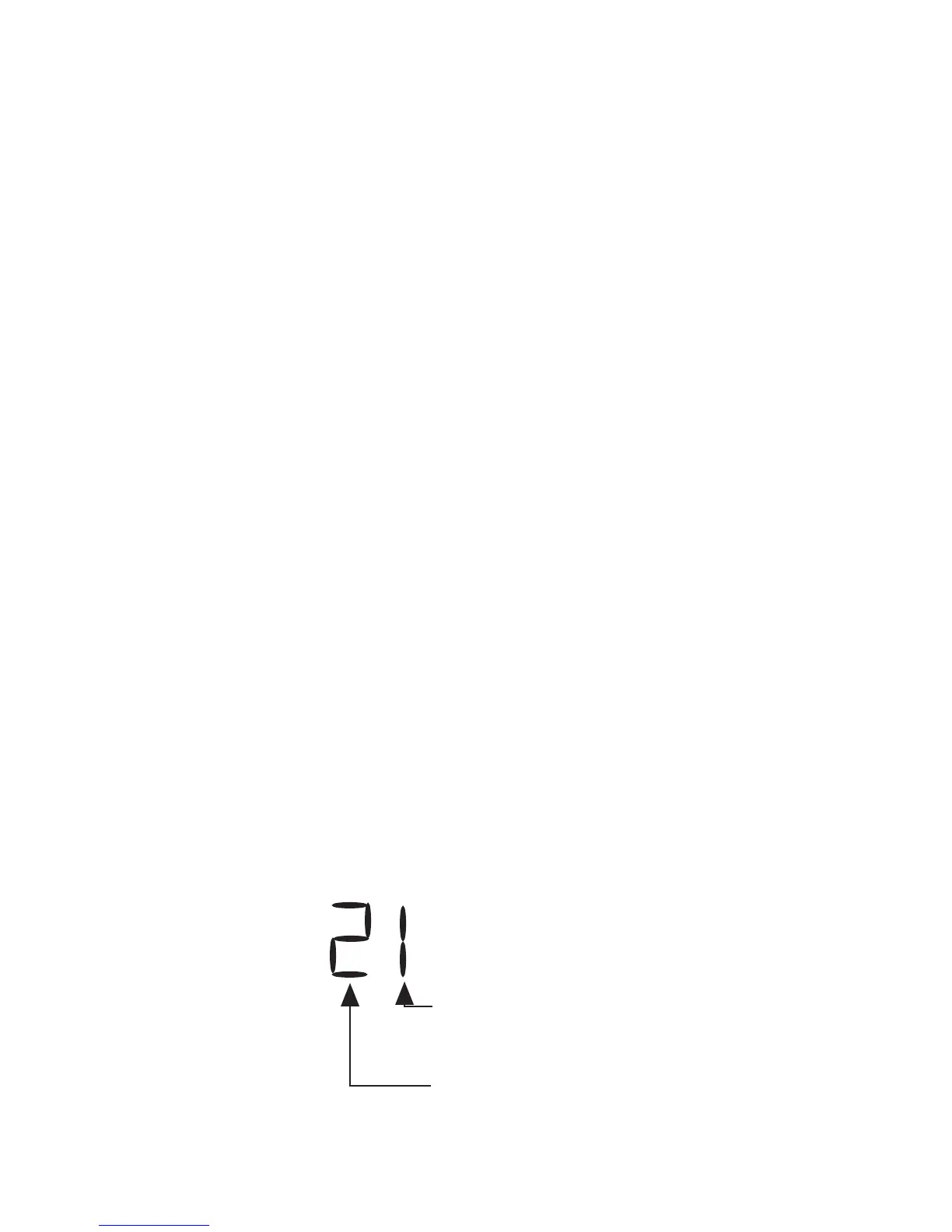

status in the following format:
Alarm 1 Status
1 = Energized
Blank = De-energized
Alarm 2 Status
2 = Energized
Blank = De-energized
