Partlow MIC 1161 - Panel Cut-Out Dimensions; Main Dimensions

MIC 1161 Manual
8

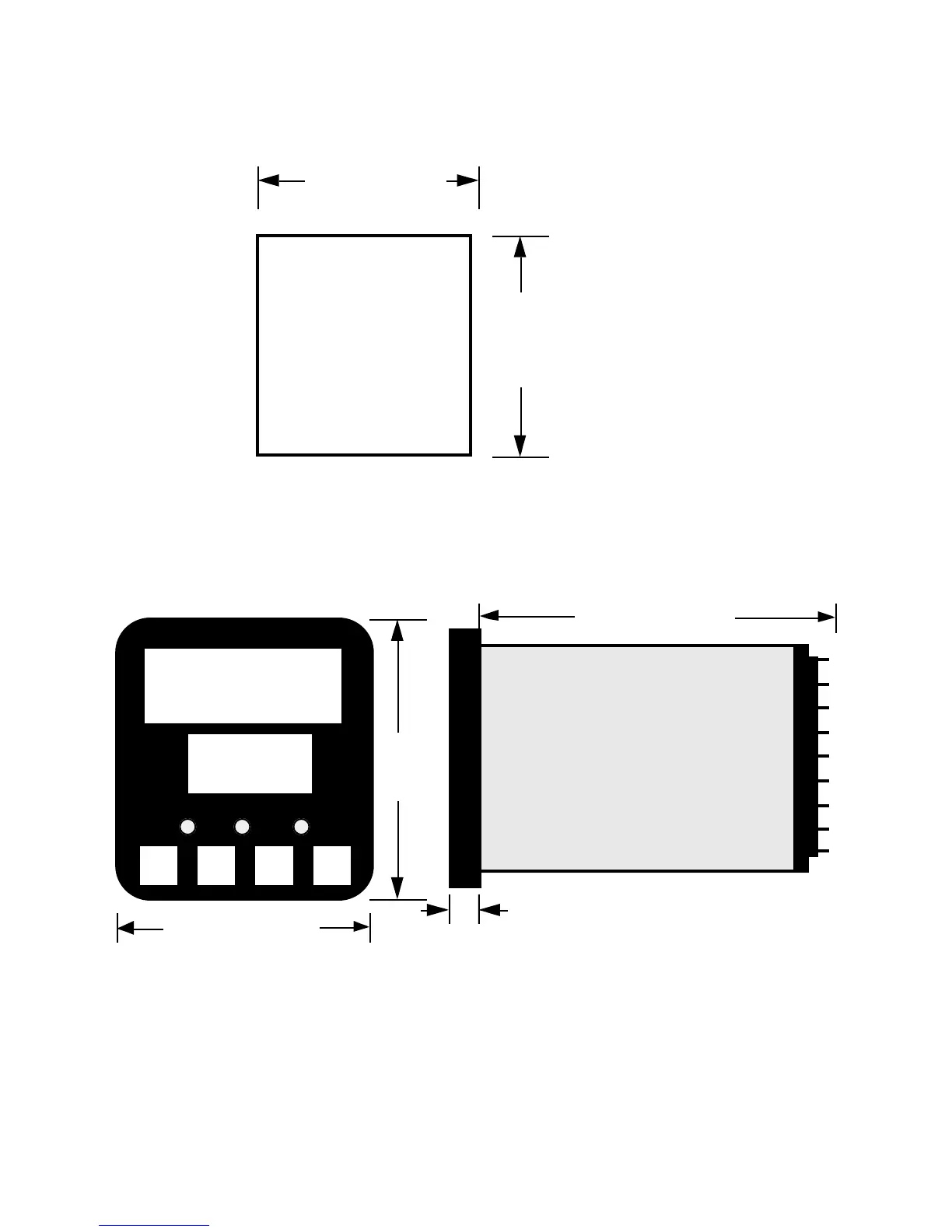

FIGURE 2-1
Panel Cut-Out Dimensions
FIGURE 2-2
Main Dimensions
48 mm (1.89 in.)
48 mm
(1.89 in)
110 mm (4.33 in.)
Side View
10 mm (0.39 in.)
PANEL
CUTOUT
SIZE
45 mm +0.5 - 0.0
(1.77" +.024 - .000)
45 mm +0.5 - 0.0
(1.77" +.024 - .000)
