56 CHAPTER 5 REPLACING FIELD REPLACEABLE UNITS (FRUs)
HDD

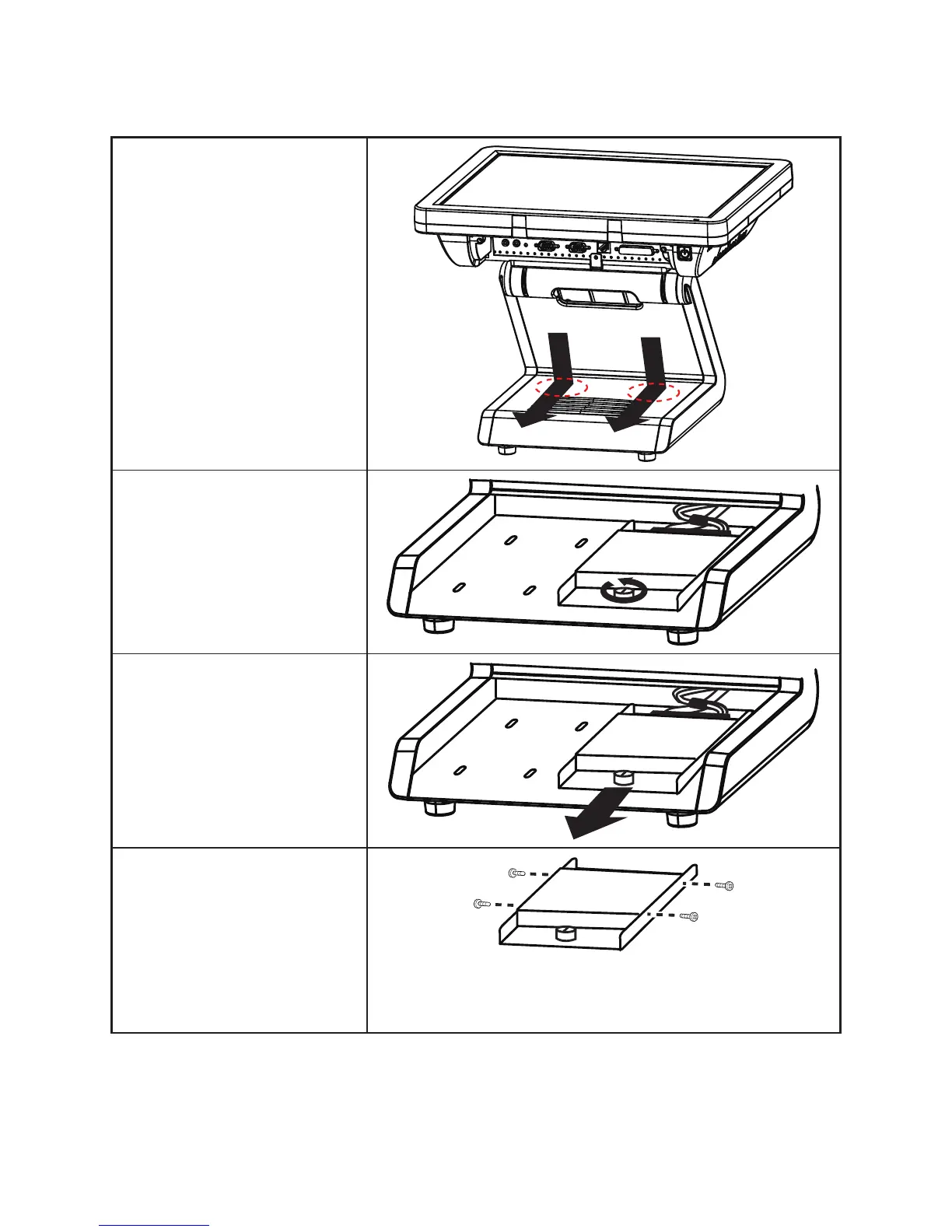

1. Turn off the device properly
through the operating system.
2. Disconnect the power cord from
the power outlet.
3. Press and the hard drive com-
partment cover as it shown on
the picture.
4. Turn the screw counterclockwise
to loosen the hard drive tray.
HDD
5. Slide the hard drive tray.
6. Disconnect the power cable and
SATA cable from the hard drive.
HDD
7. Remove the four screws, then
remove the hard drive out from
the tray.
HDD
To Next Page
