Partner SP-600-A - Ipanel Bracket; Touch Panel, LCD Panel

65

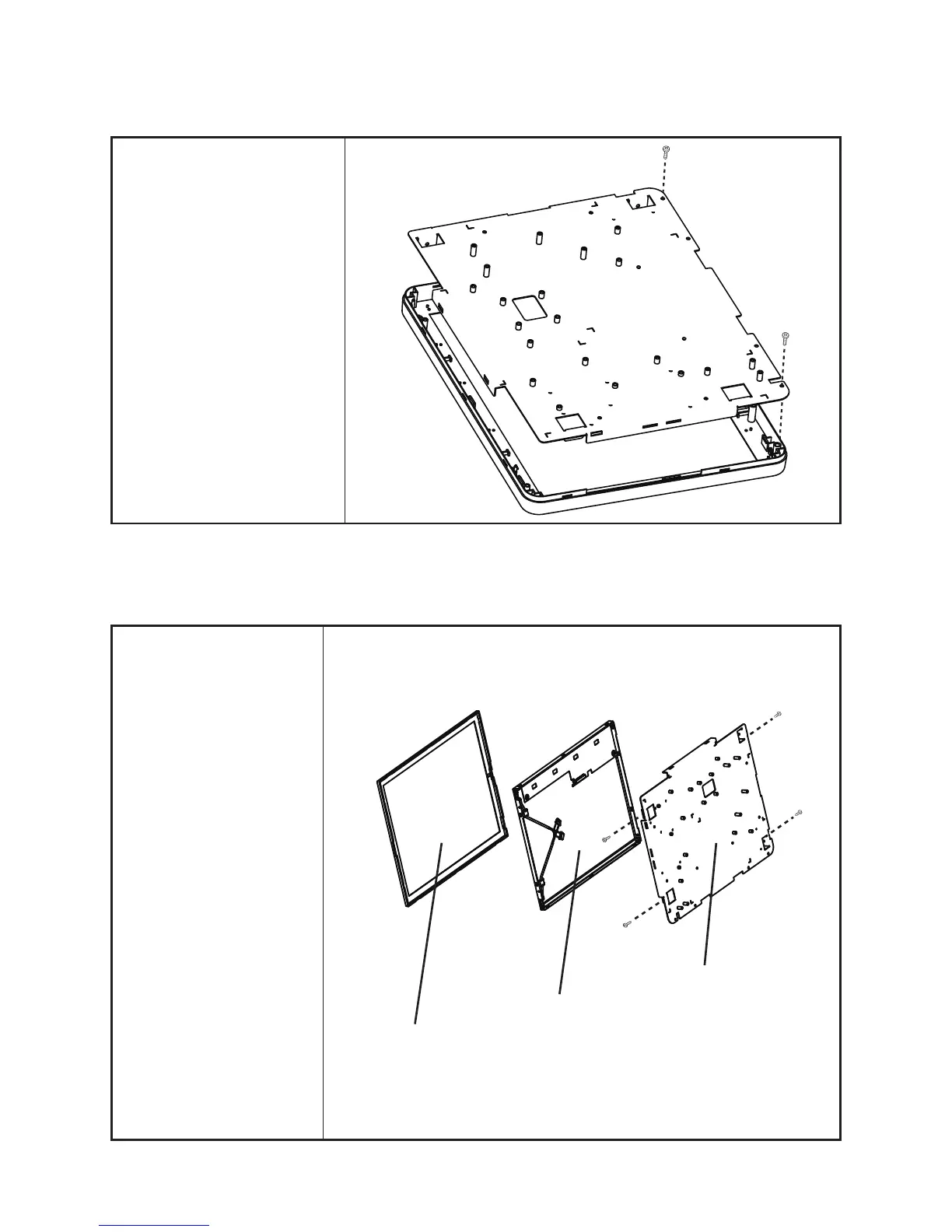

Panel Bracket
Before proceeding, remove the
following FRUs.
• “SP-600-A Panel” on page
57.
• “Panel Back Cover” on page
58.
• “Speaker” on page 59.
• “Power Button” on page 60.
• “Heatsink” on page 61.
• “I/O Shield” on page 63.
• “Mainboard” on page 64.
1. Disconnect all cables.
2. Remove two screws.
3. Remove the panel bracket.
Touch Panel, LCD Panel
Before proceeding, remove
the following FRUs.
• “SP-600-A Panel” on
page 57.
• “Panel Back Cover” on
page 58.
• “Speaker” on page 59.
• “Power Button” on page
60.
• “Heatsink” on page 61.
• “I/O Shield” on page 63.
• “Mainboard” on page 60.
• “Panel Bracket” on page
66.
1. Remove four screws from
the panel bracket.
2. Remove the LCD panel.
3. Remove the touch panel.
Panel Bracket
LCD Panel
Touch Panel
