PVP Mode
6.6.1 Description
The Payter vending protocol is a message based protocol over a RS232 connection, that allows
basic functionality needed for vending machines and terminal communication. It can handle
scenarios most common for vending machines. Refer to PVP documentation for in depth
information about this interface.
6.6.2 Connecting the Terminal
Always power off the host machine and terminal when connecting the RS232 Cable to the
terminal and the host machine devices. Power up the machine and the terminal,
6.6.3 Applicable Settings

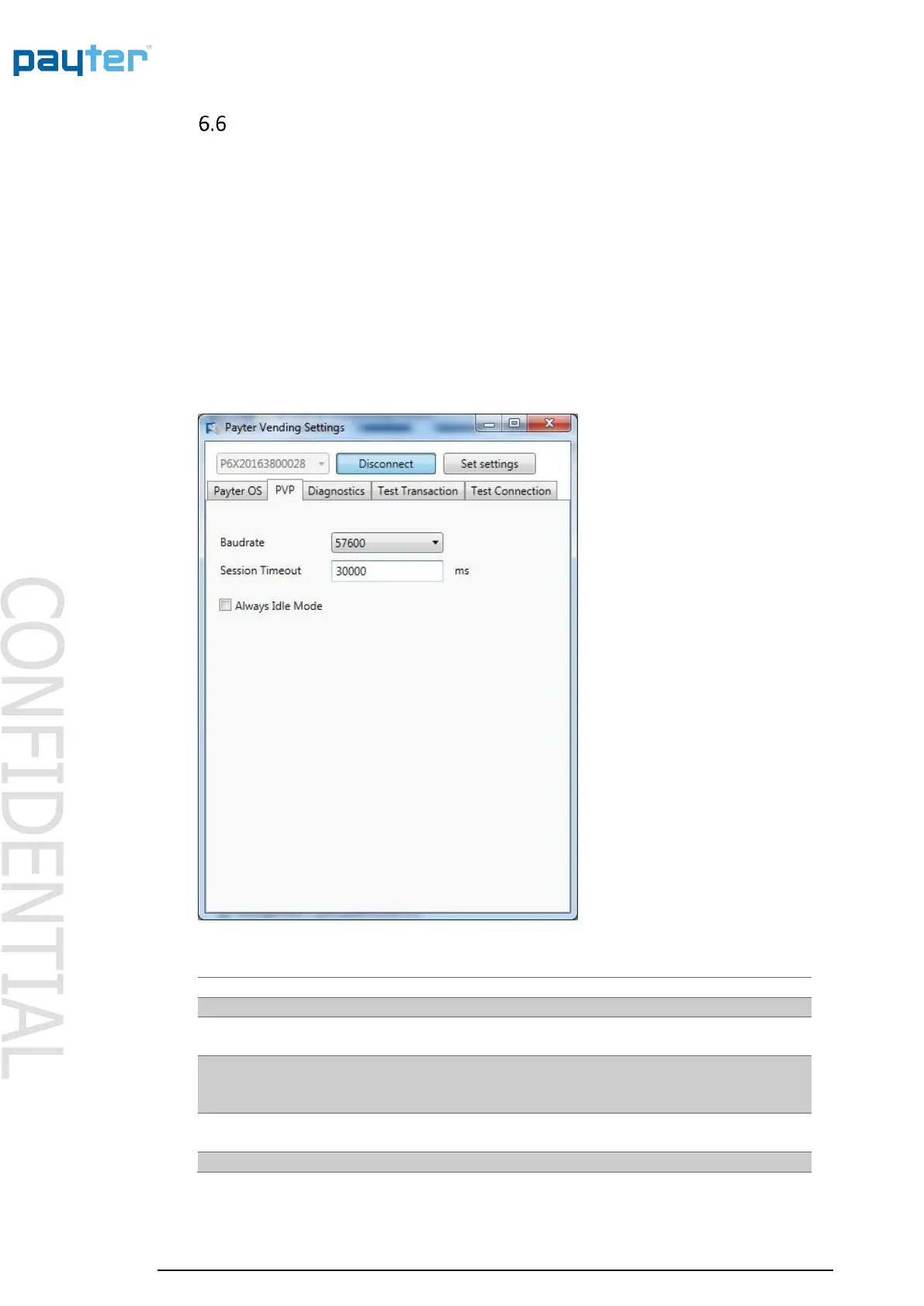

Fig. 13 – PVP Setting
Setting
Description
Baud rate
The baud rate of the serial port can be set between
4800 – 115200 and all standard baud rates in between.
Session Timeout
Indicates the time period, in ms, for selecting a product after
the START button is pressed.
Note this is only applicable when not in “always idle” mode.
Always Idle Mode
Allow product selection without pressing start on terminal.
Note the vending machine must support this mode to work.
Table 14 - PVP settings
