P6X Series User Manual
Page 9 / 50
Copyright © 2014 PAYTER
BV. All rights reserved. No
part of this document may be
reproduced in any form by
print, photo print, microfilm,
electronic copy or any other
means without written
permission by Payter BV.

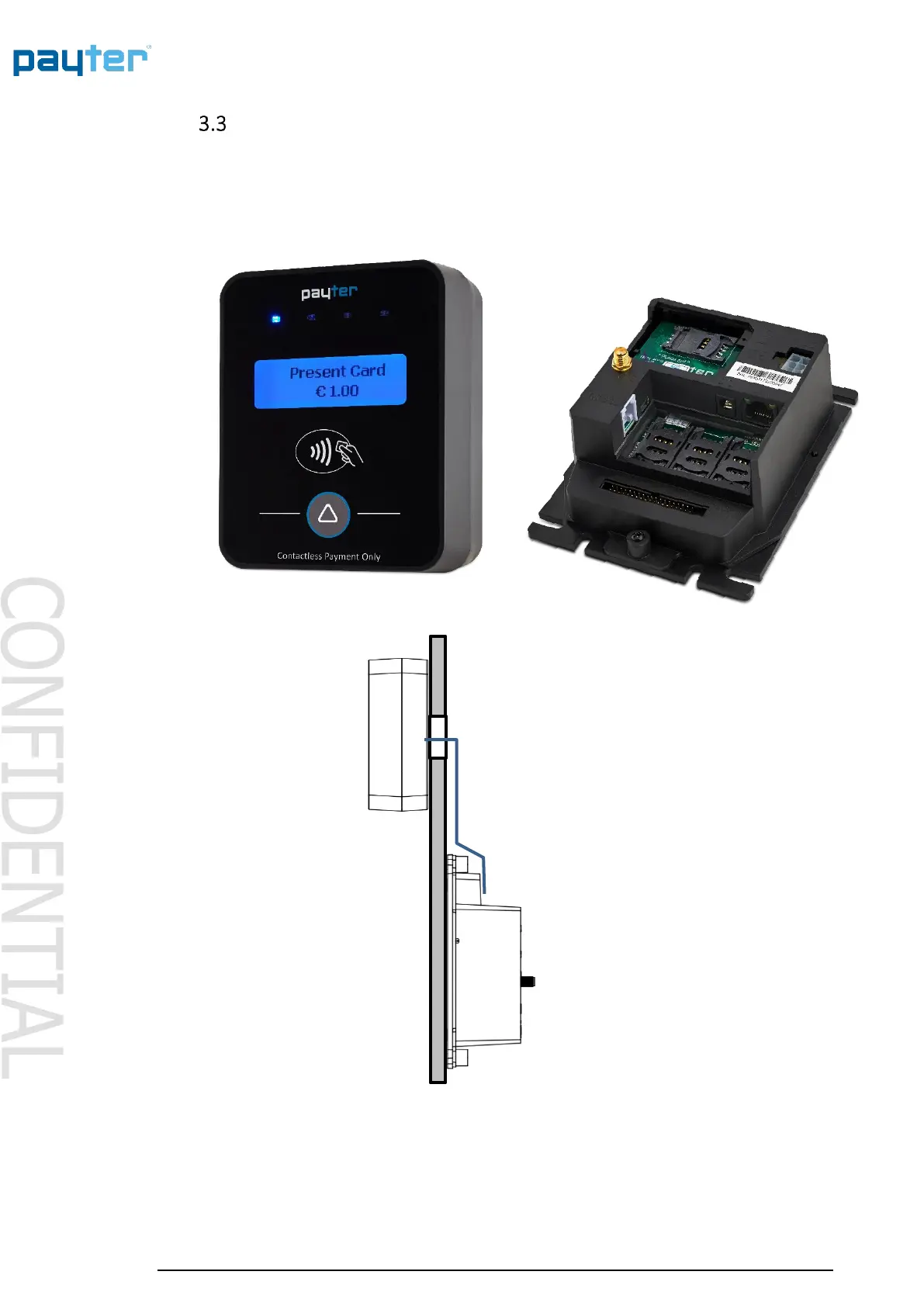

P66 Split Build on Top terminal
The P66 Split is the ideal solution for machines which has minimum space to integrate a terminal
such as snack walls and toilets. P66S is identical to the P66 terminal with the exception that the
card reader and the communication is split into two parts. The card reader can be mounted on
top of any machine, while the communication unit is located inside the machine.
Vending Machine
Section View
Front (Reader) Unit
Ribbon Cable
Communication Unit
