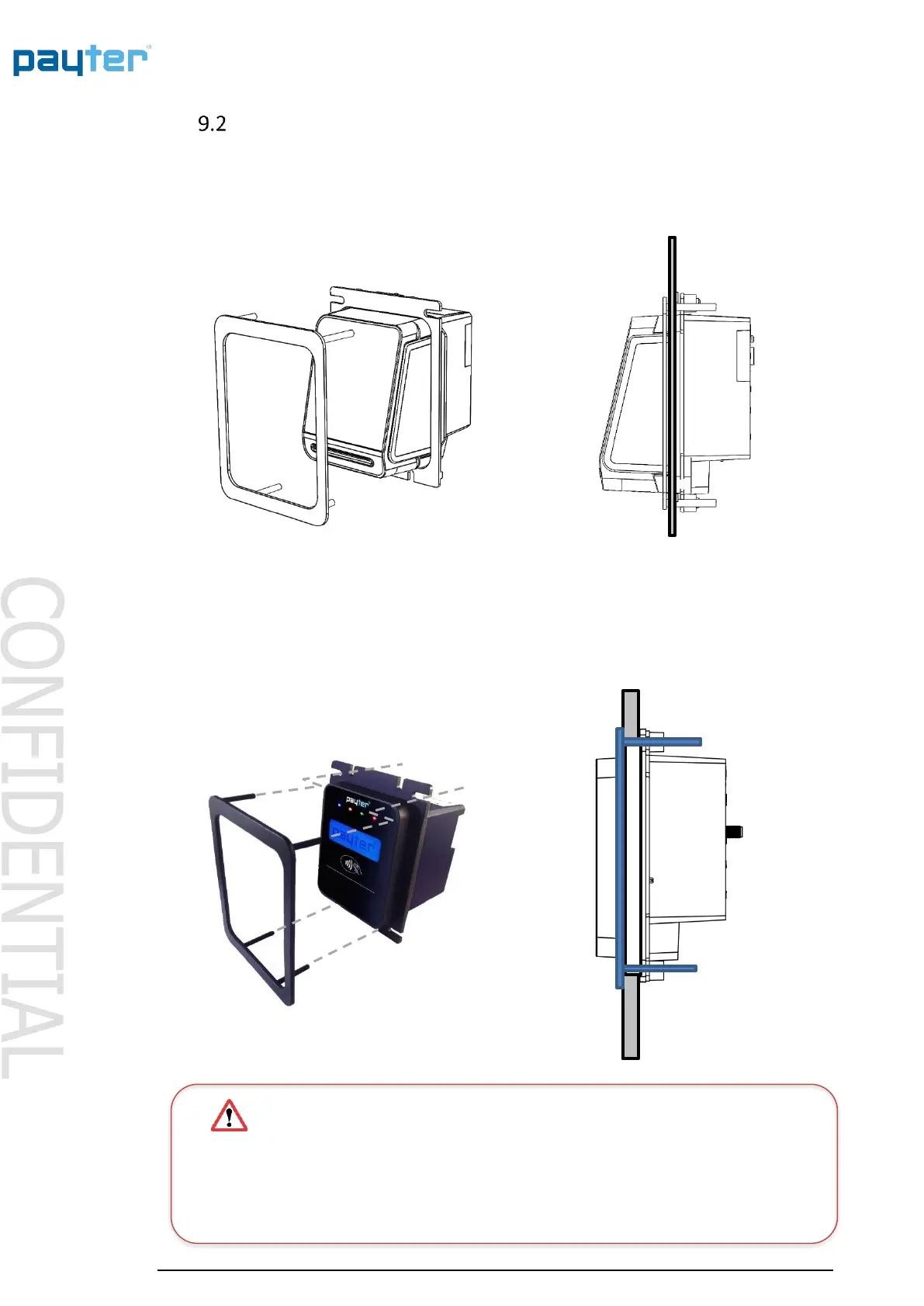

Mounting options
Installation option 1:
In case no weld studs are provided as indicated in Fig 19, Payter can provide a mounting frame
which can be secured through 4mm mounting holes, located at the indicated weld stud positions.
EVA Front Mounting Set Section View
Fig. 20
P66 Terminal
Metal environments will influence the performance of the contactless operating field. Please
ensure that the P66 terminals are not completely enclosed in a metal environment otherwise the
operating distance will be reduced. An offset of 5 mm along the sides and rear of the terminal
will provide enough distance. If you have any questions with regards to the mechanical
integration, please contact the Payter support desk.
