6. CAMWARE 4 SOFTWARE
Details for External Exposure Start

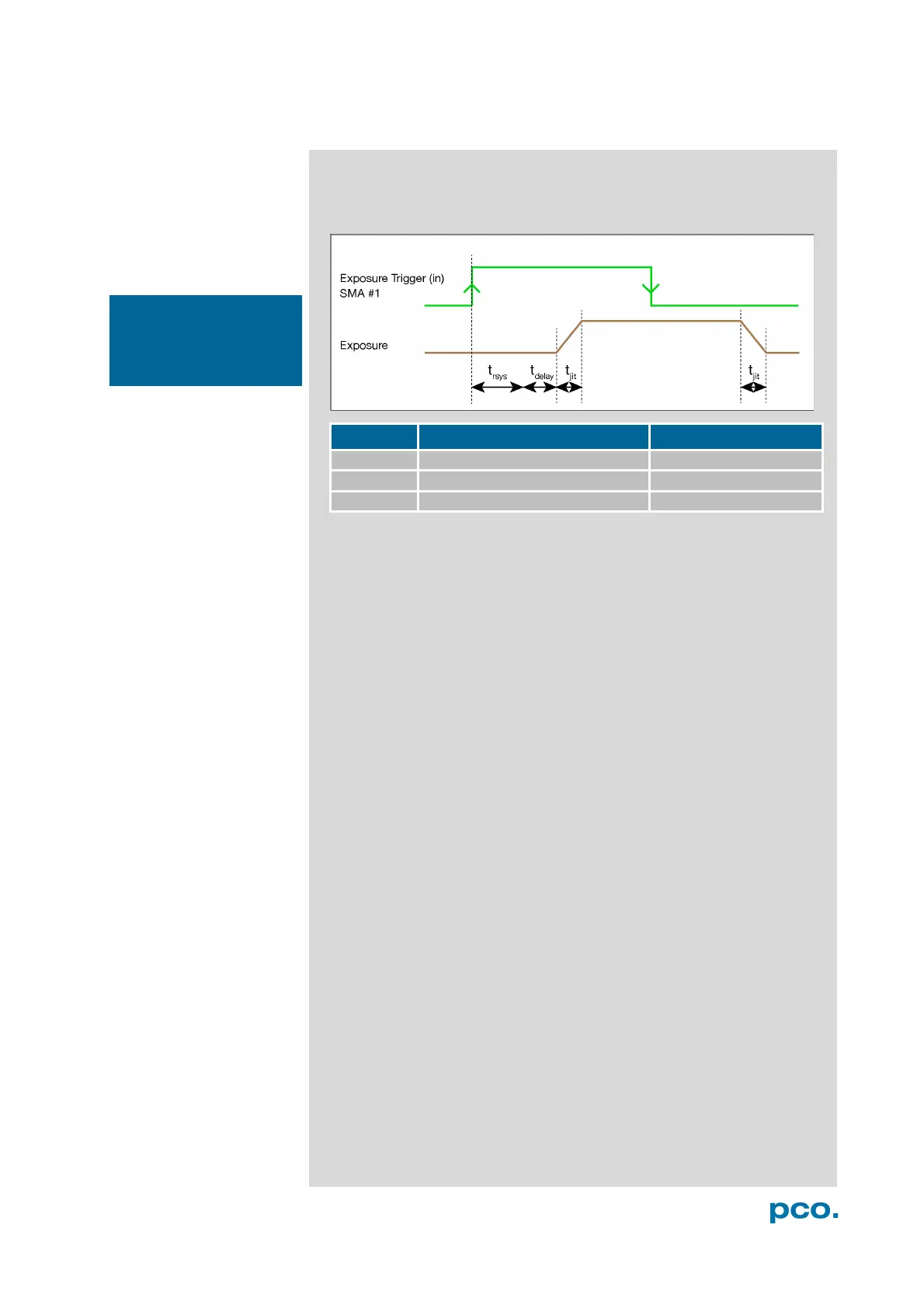

The detailed timing for external trigger includes system delay times,
an adjustable additional delay time, and the jitter.
Name Explanation Value
t
jit
jitter
≤
1 line time
1
t
rsys
fixed system delay of rising edge
2x line time
1
t
delay
programmable delay time
0 µs … 5 s
1
line time = 12.136 µs
For optimized synchronization (minimized jitter time) use the falling
edge of the line signal at the Status Expos output SMA #4 (see
6.3.7).
System time t
rsys
is depending on your camera settings and can be
read out from your camera, for further information see SDK manual
function PCO_GetImageTiming.
NOTE
The jitter t
jit
can be a
maximum of one line
time.
