Pco pco.panda 4.2 User Manual

20
Exposure time < Sensor frame readout time
In case the required exposure time is shorter than the frame readout
time, the image is readout through an exposure band moving from
the top to the bottom of the sensor.
For example the shortest exposure time in rolling shutter is 10 µs for
the pco.panda 4.2.
The band of simultaneous exposure is in this case (smallest possible
height) at full resolution:
For example: pco.panda 4.2: 10 µs / 12.136 µs (line time) = 1 →
number of simultaneous lines.

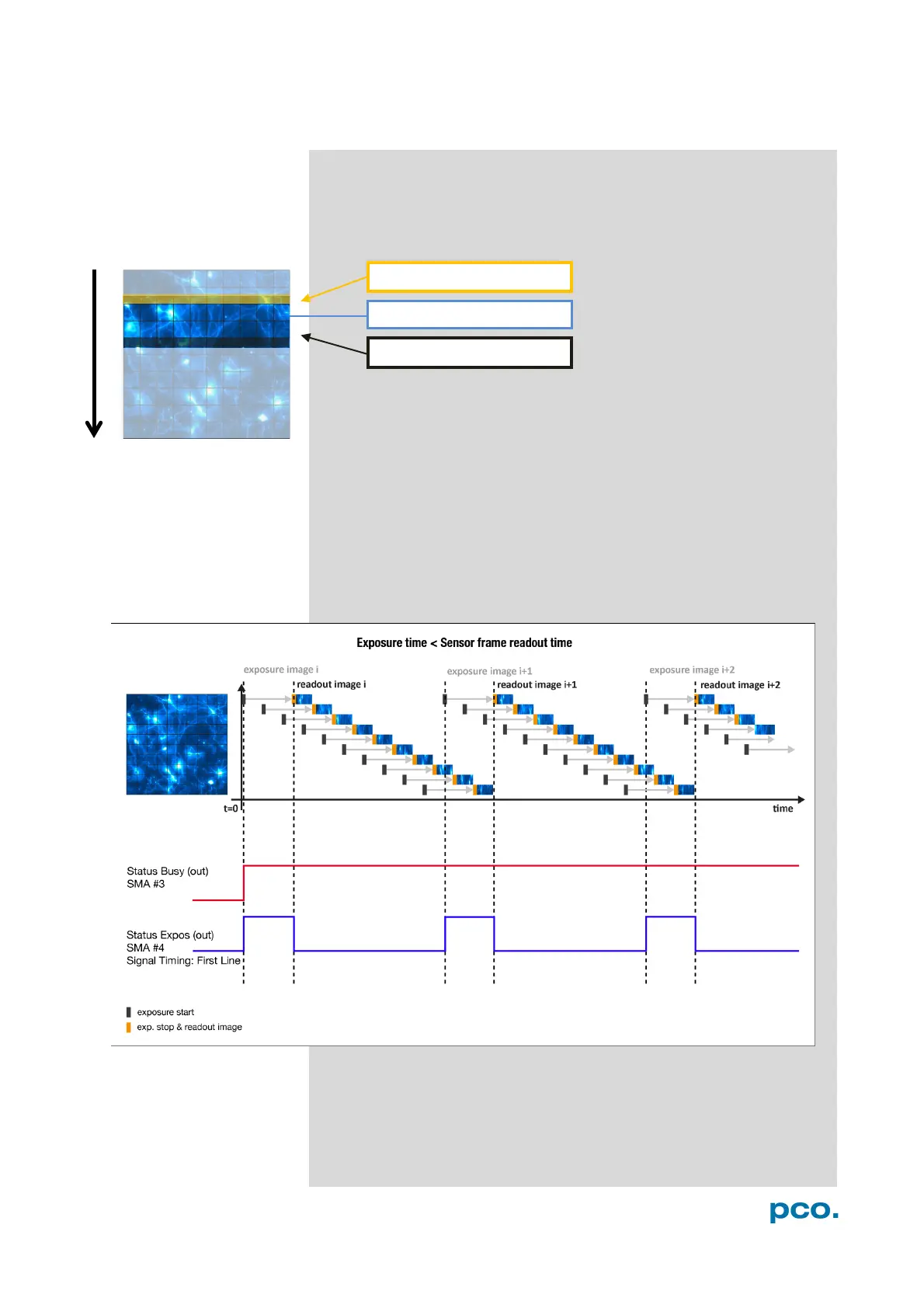

This is an example timing diagram for Trigger Mode Auto
Sequence, SMA explanation see 6.3.7
exposure stop & readout
reset & exposure start
band of simultaneous exposures
