Overhead Flight Assembly
1.
For cases previously run, refer to the View Setup Values PanelView screen
in the PanelView for scale settings.
2. Use the adjusting ratchet located on top of the machine to raise and lower
the overhead flights.
3.
For initial setup, adjust the overhead flight assembly to the case width
dimension.
4. Use the adjusting ratchet located on top of the machine to raise and lower
the overhead flights.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
56
serudecorP revoegnahC

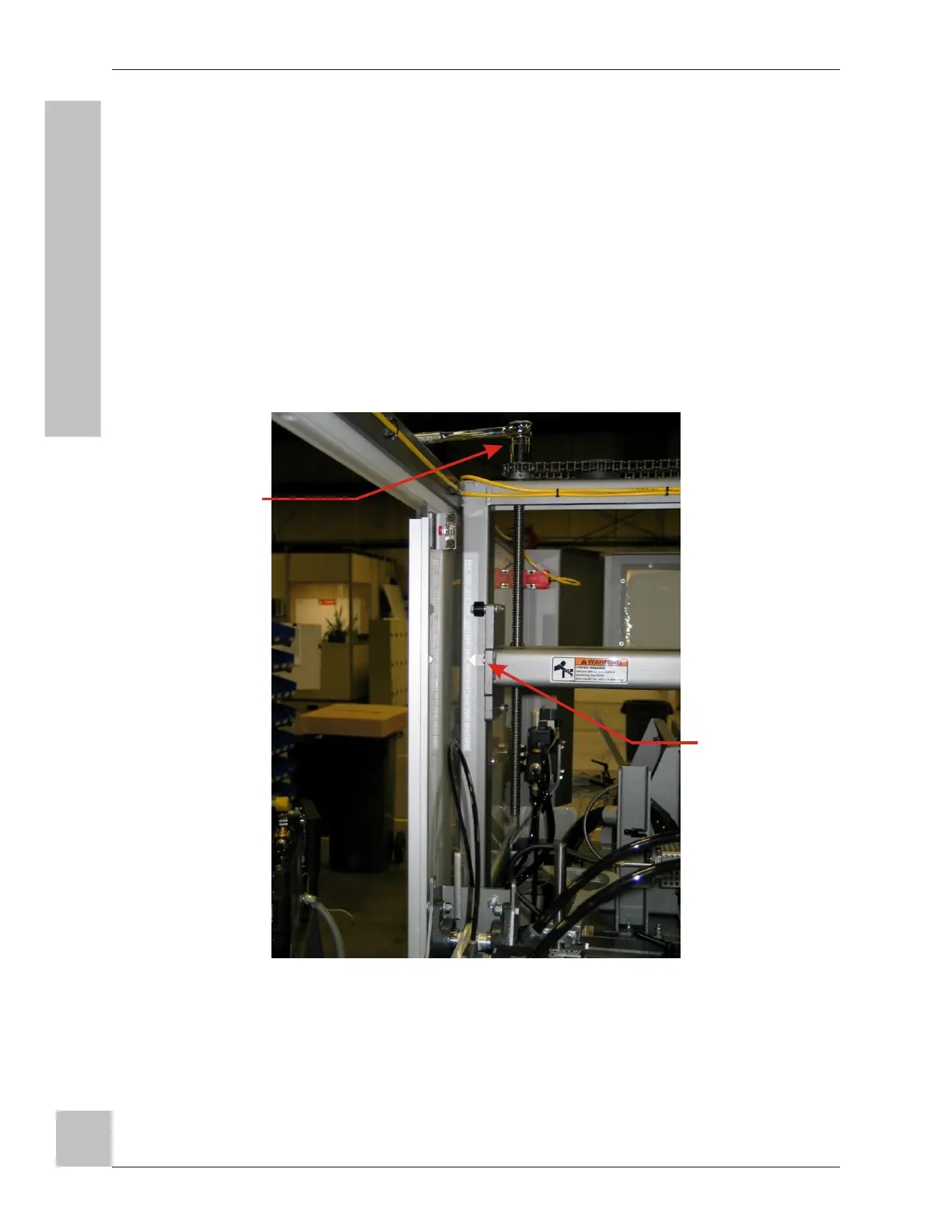

Fig. 49: Overhead Flight Assembly Adjusting
Ratchet
Adjusting
Ratchet
Scale and
Pointer
To Next Page
