Setup Arm E-Stop/Machine Jam Safety
Warning! Cut and Crush Hazard!
Keep clear of set-up arm when entering.
Consult the machine operations manual for proper
procedures before clearing a jam or making
adjustments.
Failure to comply could result in serious injury
1. The set-up arm is operated through a two-position valve.
2. When the machine is E-stopped or stopped due to a product jam, the valve
controlling the set-up arm immediately shifts to exhaust the air from both
sides of the set-up arm cylinder. The set-up arm will lower.
3. To lock the set-up arm in the upright position for set-up or maintenance
purposes use the “locking key” provided.
4. Raise the set-up arm and insert the “key” through the front keyhole slot,
through the slotted framework of the set-up arm, then through the back
keyhole slot.
5. When finished, make sure to remove the key and lower the set-up arm before
starting the machine.
Operations Manual
CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Changeover Procedures
57

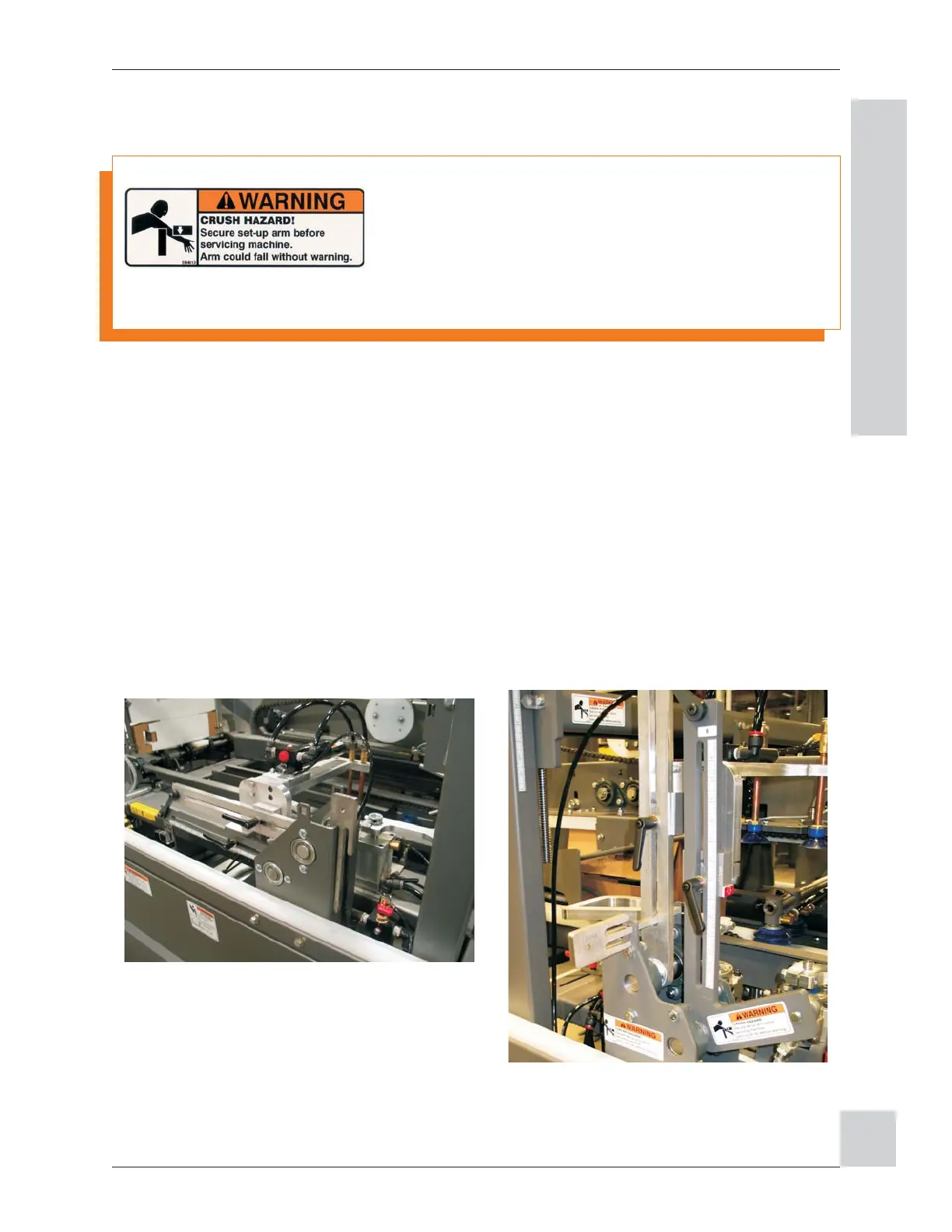

Fig. 50: Setup Arm in Down Position
Fig. 51: Setup Arm Locked into
Position
