5.
For initial setup, erect a case at the setup area.
6. Loosen the two quick-release handles.
7. Slide the arm up or down to the top of the case. The scale setting should
reflect the case width dimension.
Note: As a quick check, the bottom of the vacuum cups should be even with the bottom
of the upper flight chain. (The overhead should be adjusted to the new case size
first.)
8.
Tighten the quick-release handles.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Changeover Procedures
59

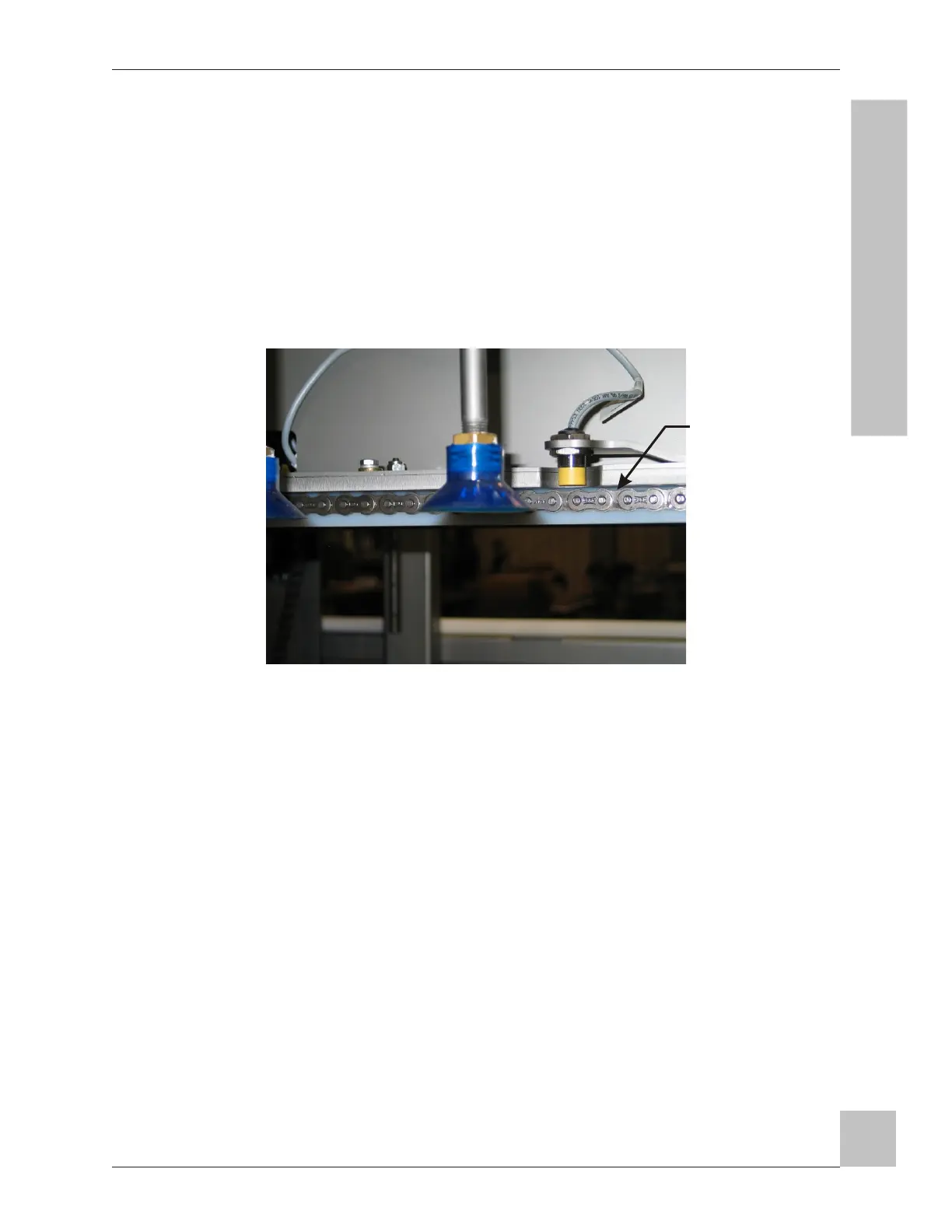

Fig. 53: Setup Arm Vacuum Cup Even With Upper
Flight Chain
Upper Flight
Chain
