Tipoff Backstop
Note: This is not a scaled adjustment.
1. Adjust the tip-off backstop for the length of the case.
2. Loosen the quick-release handles.
3. Slide the tip-off backstop into the appropriate position according to the size
of the erected case.
4. Tighten the quick-release handles.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Changeover Procedures
63

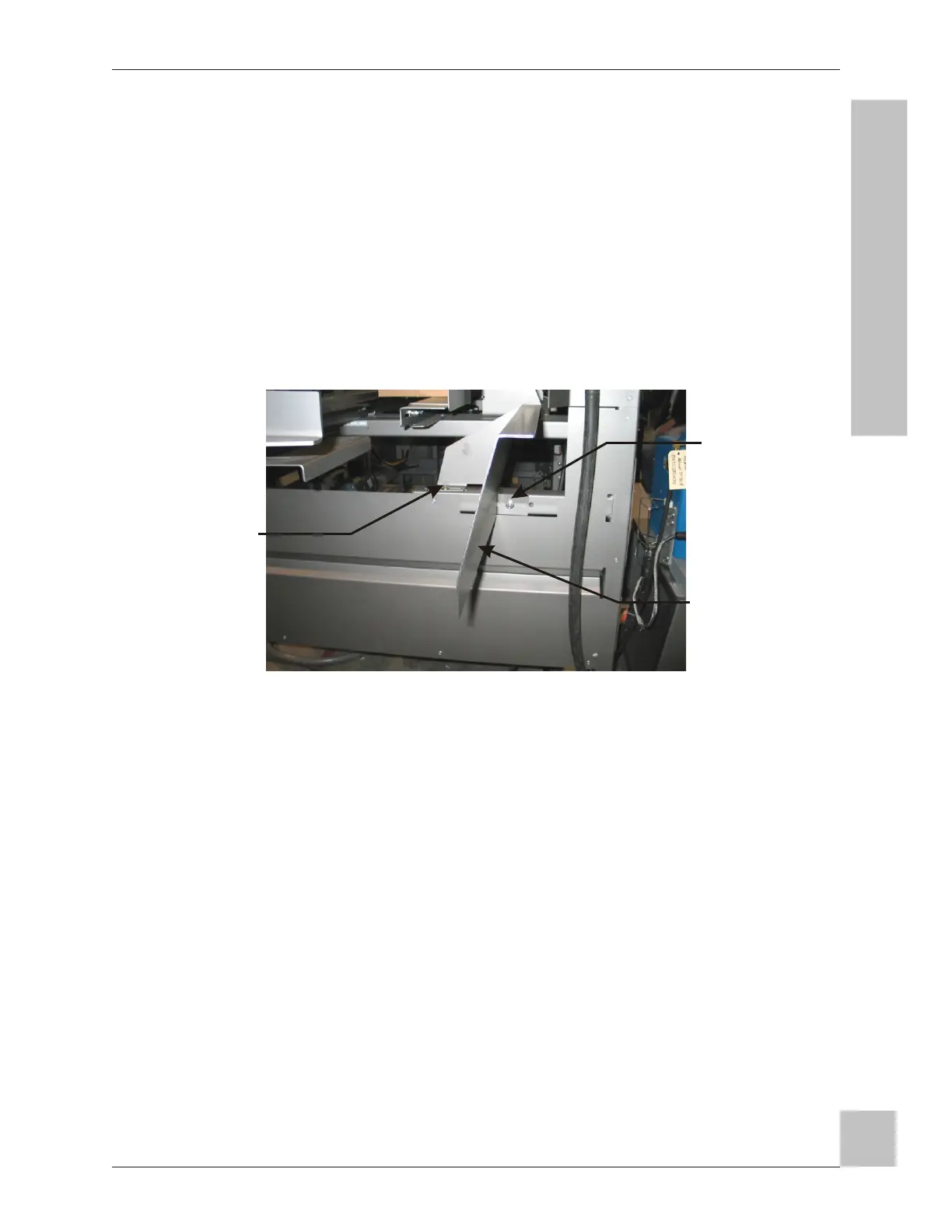

Fig. 59: Tip-off Backstop
Tip-off Backstop
Mounting Bolt
Mounting Bolt
