MY22P01 - 12_1.0_31.08.2021
194

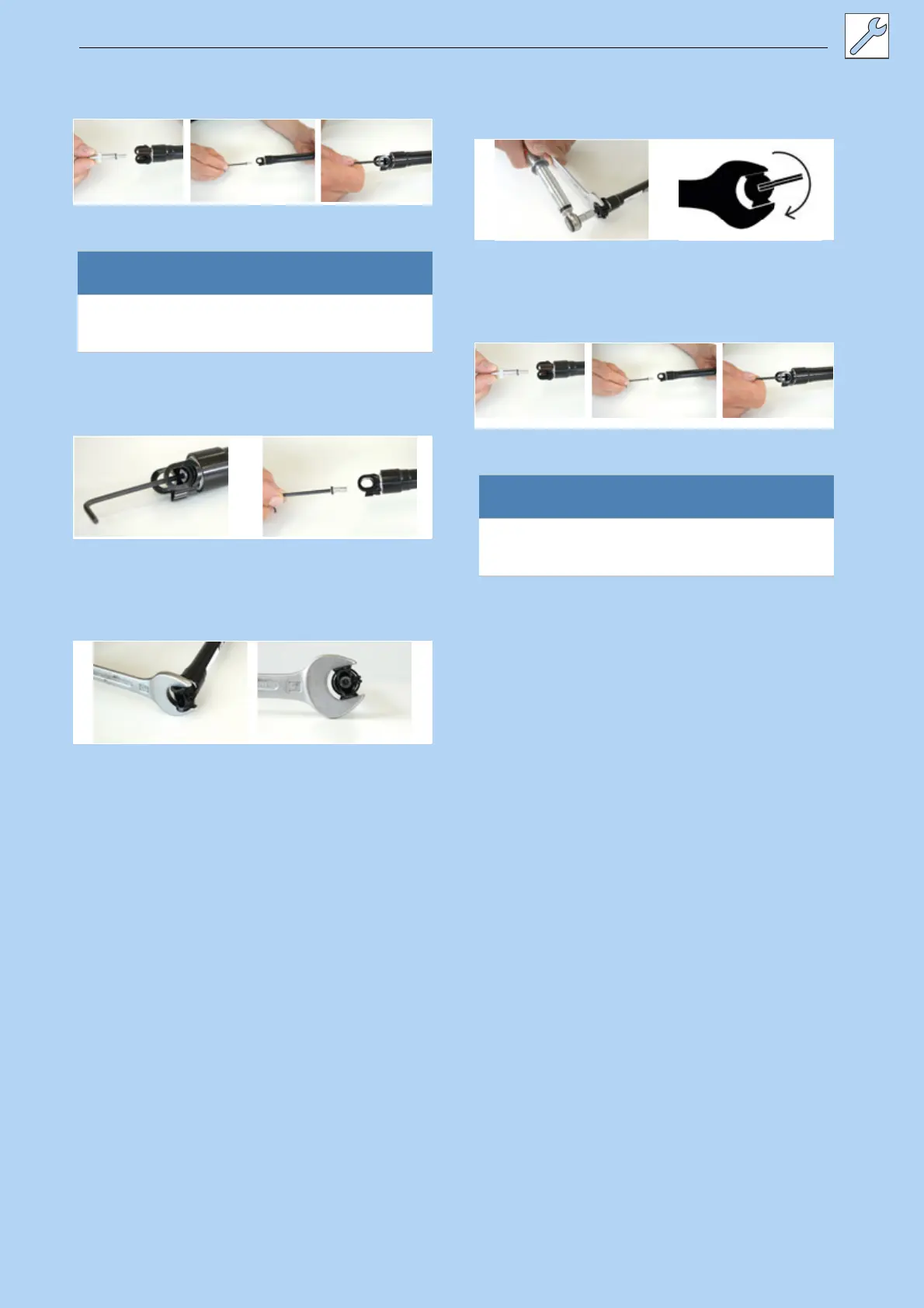

Maintenance
5 Use a 3 mm hex spanner to screw the valve lid
back on and tighten with a maximum of 0.5 Nm.
Figure 182: Fastening the cartridge valve lid
Setting the slipper clutch
1 Use 3 mm hex spanner to unscrew valve cap.
Figure 183: Unscrewing the valve cap
2 Secure the mounting interface against twisting
with a 24 mm open-end spanner.
Figure 184: Securing against twisting
3 Set the torque to 18 Nm with a torque wrench
and a 6 mm hex bit with a shaft length of at
least 25 mm. Rotate clockwise.
.
Figure 185: Setting in a clockwise direction
4 Use a 3 mm hex spanner to screw the valve lid
on and tighten with a maximum of 0.5 Nm.
Figure 186: Fastening the cartridge valve lid
Notice
The cartridge is not airtight without the valve
lid.
Notice
The cartridge is not airtight without the valve
lid.
