INTELLICHEM
®
Controller Installation and User’s Guide
INTELLICHEM
®
Controller Installation and User’s Guide
37
IntelliChem
®

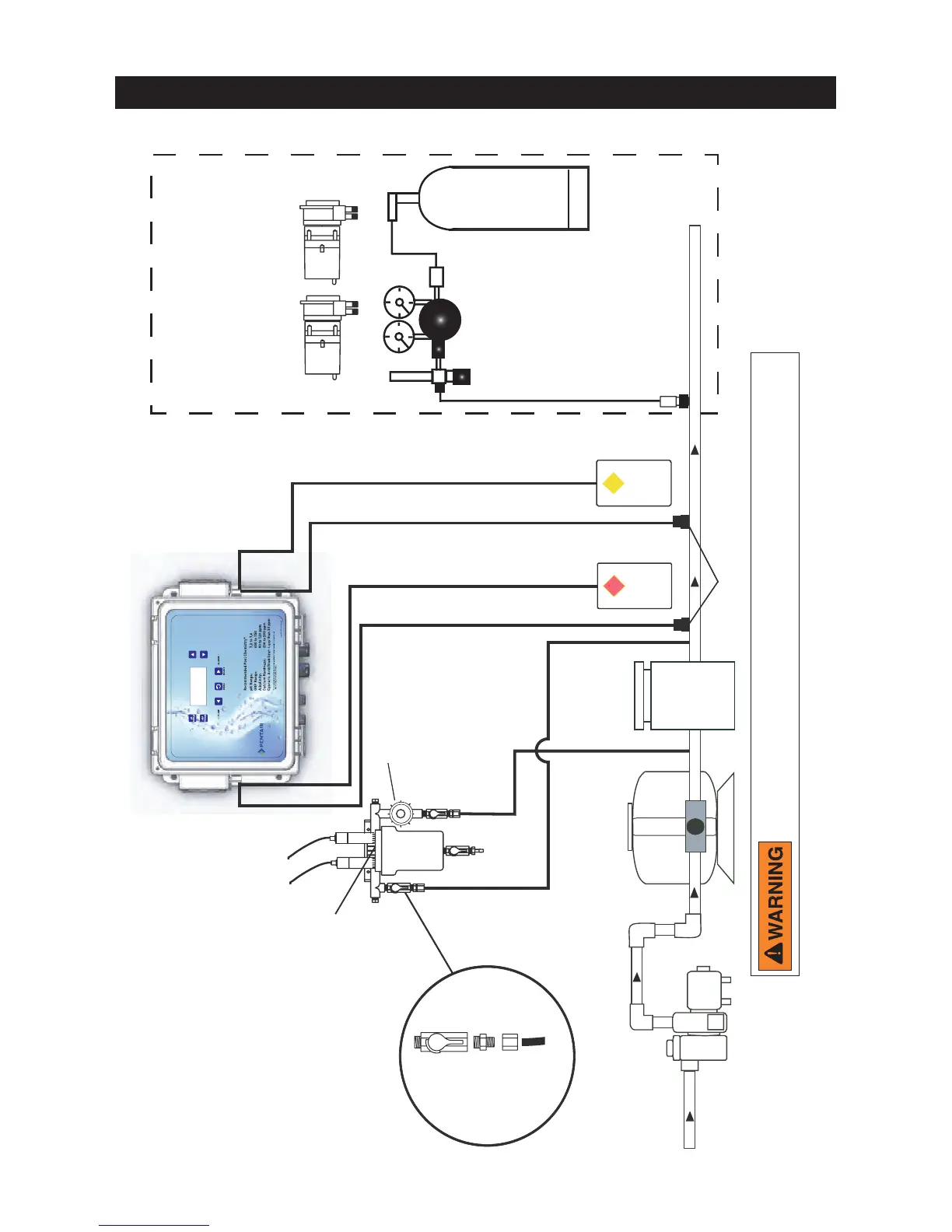

Controller Installation Plumbing Diagram
Figure 2: IntelliChem
®
Controller Plumbing Installation
HAND TIGHTEN FITTINGS ONLY: USING A WRENCH TO TIGHTEN WILL CRACK FITTINGS
37
IntelliChem
®
Controller Installation Plumbing Diagram
Figure 2: IntelliChem
®
Controller Plumbing Installation
HAND TIGHTEN FITTINGS ONLY: USING A WRENCH TO TIGHTEN WILL CRACK FITTINGS
Flow Switch
InletOutlet
Water
Flow
CHLORINE
Chlorine
Pump
Acid
Pump
Sample
Valve
Acid Injection
pump
Tubing
Fitting
HEATER
FILTER
ACID
External pumps option: 1 pump (acid feed) 2 pump (acid/chlorine feed)
Chlorine
Pump
IntelliChem
®
Controller
CO2 Kit P/N714000070
CO2 Tank
P/N 521895
Filter
WATER CHEMISTRY
®
INTELLICHEM
(see page 32)
pH Sensor
ORP Sensor

Pentair intellichem Specifications

General

pH Control	Yes
ORP Control	Yes
Display	LCD
Waterproof Enclosure	Yes
Enclosure Rating	NEMA 4X
Alarms	Yes
Operating Temperature	32° to 122°F (0° to 50°C)
Humidity Range	0% to 95% non-condensing
Communication	RS-485
Outputs	Relays for chemical feed pumps
Inputs	Flow sensor
