IntelliTouch ScreenLogic User’s Guide
Tablet Overview
The iTC45 (P/N 520503) Interface Kit includes a wireless touch screen Tablet which is custom configured with the
IntelliTouch ScreenLogic Pool and Spa control application. Featuring a robust magnesium alloy enclosure, the
2 lb tablet with 8.4 in TFT display is powered by the Intel XScale processor providing “instant-on” capability with
extended use between battery recharge. The operating software is Windows CE .NET bringing with it numerous
applications, including support for Internet browsing, Windows Media Player, local e-mail client, and word
processing.

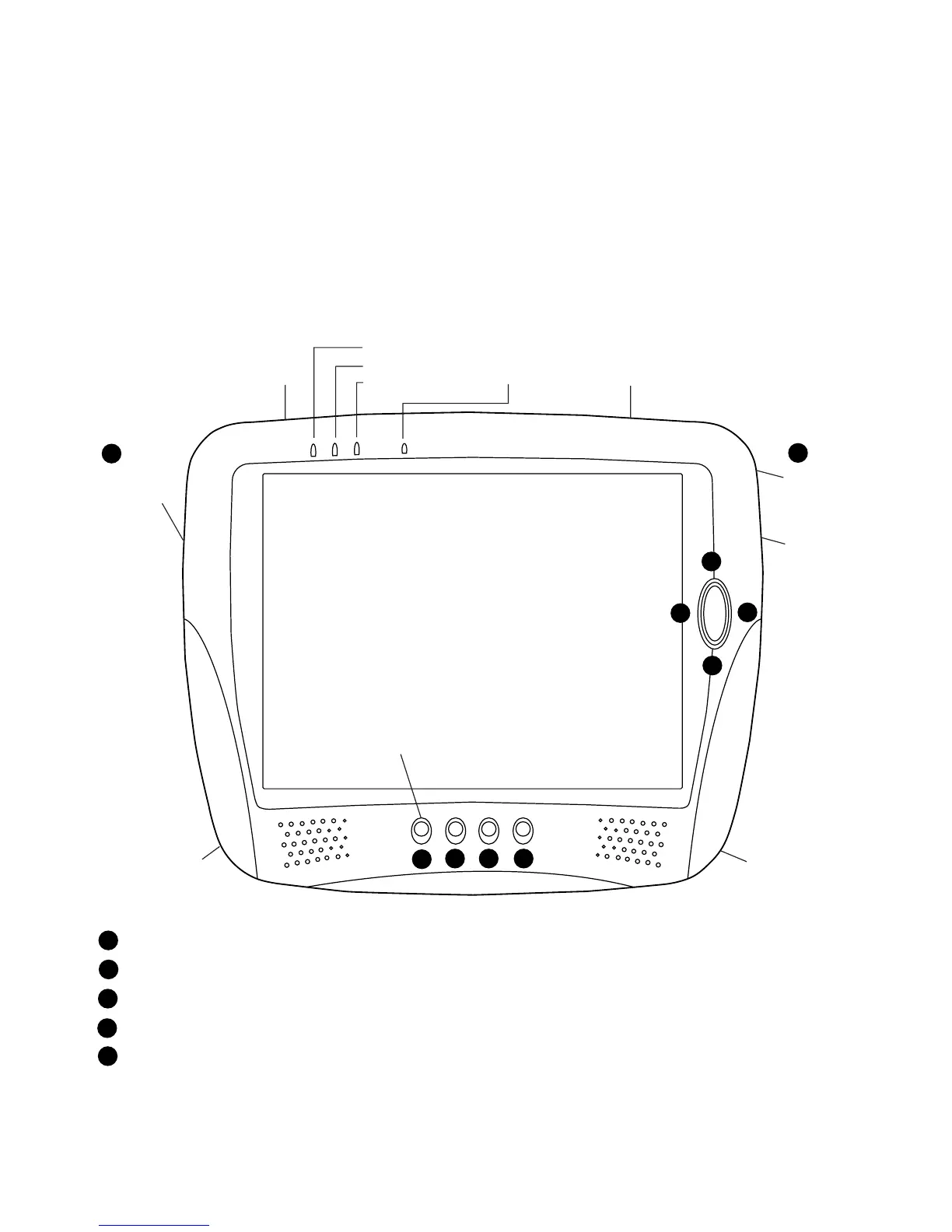

Tablet Controls and Lights
The following describes the Tablet controls and lights:
Volume Down: Push on left edge of oval button.
Volume Up: Push on right edge of oval button.
Brightness Up: Push on upper edge of oval button.
Brightness Down: Push on lower edge of oval button.
Virtual Keyboard Toggle Button: Open and close virtual keyboard. To input text into the Digital Tablet,
press this button to display the virtual keyboard. Tap the desired letters to enter text. Press the button
again to close the keyboard. Note: Tap the Ctrl key, then the Q key to exit the IntelliTouch ScreenLogic
program. Double-tap the IntelliTouch ScreenLogic icon on the Windows Desktop to restart the program.
1
2
3
4
5
Cradle Interface
Battery Light
CF Card Slot
Network Light
PC Card Slot
Power DC Input
USB Port (Host)
Microphone
Record Light
Headphone
Jack
Power/Reset
or Suspend
Record
button
(Disabled)
1
2
3
4
5
6 7 8
9
10
Note: Press button 5 to display the virtual keyboard.
Tap the Ctrl key, then the Q key to exit the
ScreenLogic program.
