25
IntelliTouch ScreenLogic Users Guide
Connecting to the Personality Board
WARNING
-
Read the following WARNING information before removing the Power/Load Center
enclosure high voltage cover-panel. It is required that the main power into the home be switched
OFF at the main circuit breaker box whenever the high voltage cover-panel is removed. The main
power must also be switched OFF to access the Power/Load Center enclosure low voltage
raceway.
The following steps describe how to connect the four conductor cable to the Personality board.
1. Switch the main power OFF to the Load Center.
2. Unlatch the front door spring latches, and open the front door of the Load Center.
3. Remove the screws securing the high voltage cover-panel. Remove the cover-panel from the enclosure.
4. Loosen the two upper access screws from the Outdoor Control Panel.
5. Lower the Outdoor Control Panel down to access the Personality board.
6. Route the four conductor cable (22 AWG) cable in through a knockout at the bottom of the low voltage
raceway, then route the cable up through the low voltage raceway to an available COM port on the
Personality board.

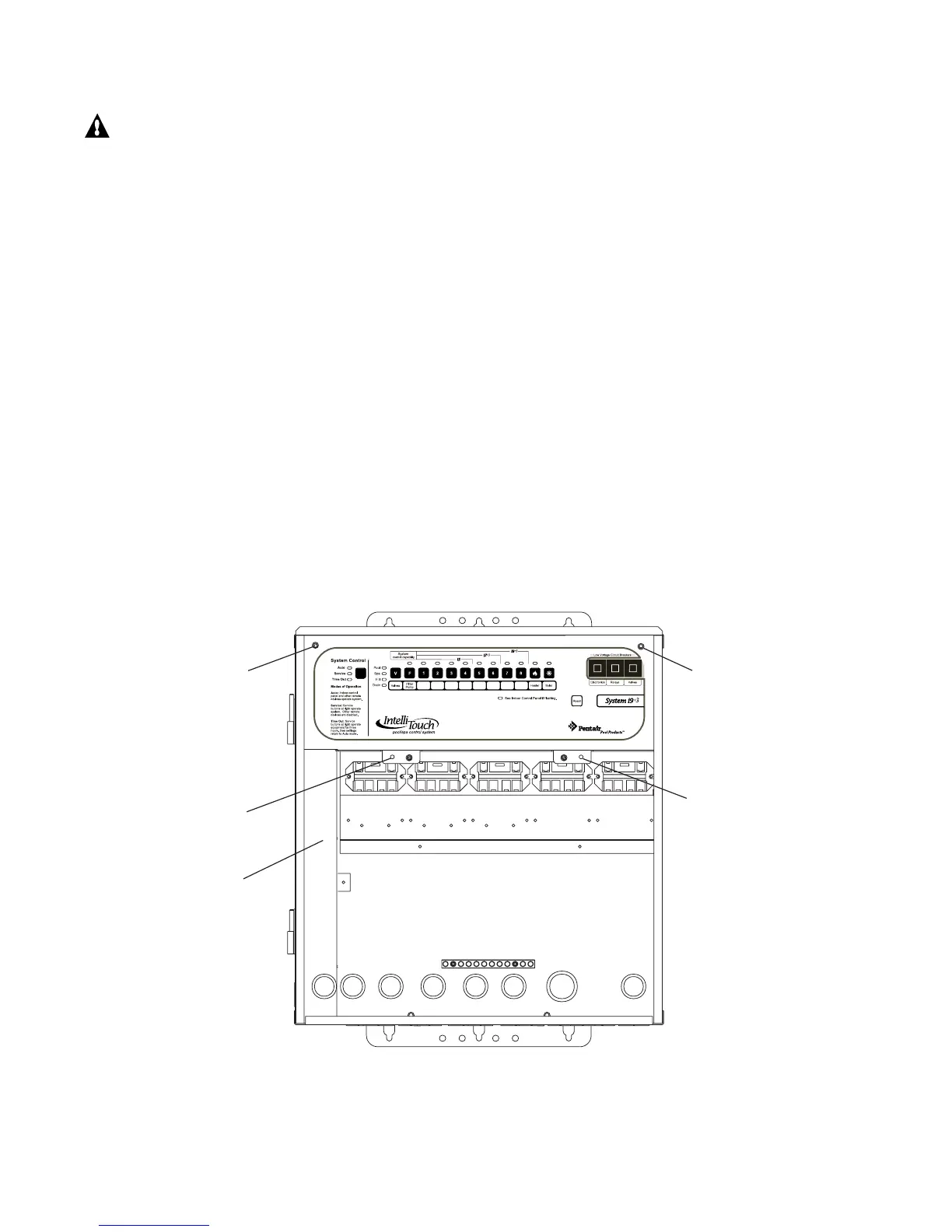

Cover-panel screw
(Cover-panel not
shown)
Cover-panel
screw
Access screw
(Outdoor Control
Panel)
Access screw
(Outdoor
Control Panel)
Low-voltage
raceway
Load Center
