32
IntelliTouch ScreenLogic Users Guide
enoZemiT.S.U)TMG(emiTnaeMhciwneerG
emiTnaiiawaH)00:01-TMG(
emiTnaksalA)00:90-TMG(
&SU(emiTcificaP
anaujiT;)a
danaC
)00:80-TMG(
emiTniatnuoM)00:70-TMG(
emiTlartneC)00:60-TMG(
emiTnretsaE)00:50-TMG(

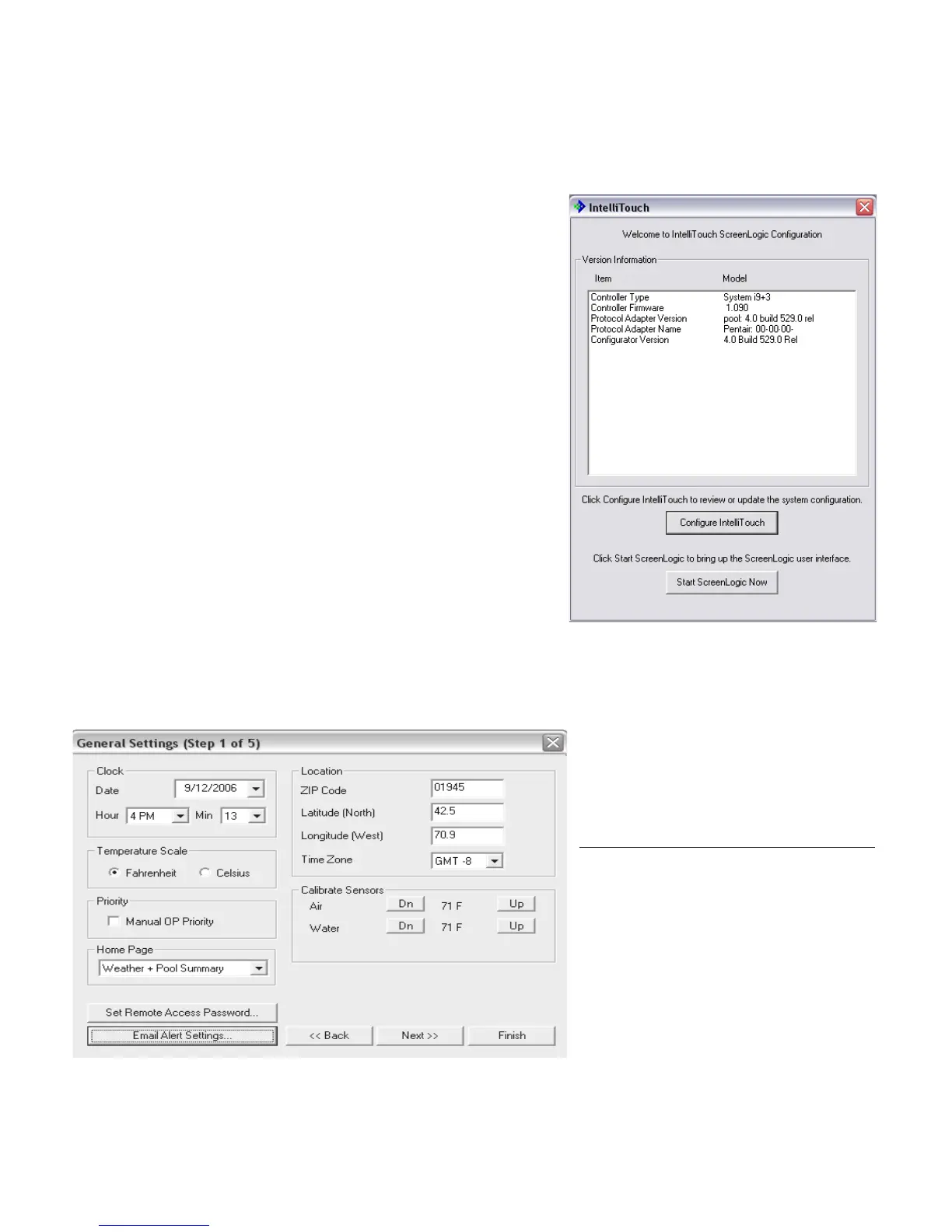

ScreenLogic Configuration and Maintenance Screen
The Configurator utility opening screen displays the type of IntelliTouch system equipment, firmware and software
versions being used. From this screen you can start the Configurator utility to configure ScreenLogic for the
IntelliTouch system, or start the ScreenLogic program.
To start the Configurator utility: Tap the Configure
IntelliTouch button, read the warning message and tap
Continue. Proceed to configure ScreenLogic using the
dialogs (Steps 1 through 5). After you are done, click the
Finish button to return to the opening screen.
To start ScreenLogic: Tap the Start ScreenLogic button.
The Main screen is displayed.
Use the following Time Zone table to
determine your location.
General Settings (Step 1 of 5)
