68
IntelliTouch ScreenLogic Users Guide
Lights Screen: IntelliBrite
Before the configured IntelliBrite lights display on this screen, circuits must first be assigned in the “Setup Circuits
(Step 2 of 5)” dialog of the Configurator utility, then selected in the “Special Lights” dialog. For more information,
refer to “Set Circuits (Step 2 of 5),” page 35.
Using the IntelliBrite buttons, you can select color show modes or fixed colors, and recall a previously captured
custom color. There can be up to 12 IntelliBrite light circuits on the main Lights screen. Each IntelliBrite light must
have its own relay and separate circuit. The IntelliBrite lighting features are not available when using the i5, and i5S
IntelliTouch systems.
Color light show and fixed color buttons
Choose one of the six pre-programmed color light show modes or five fixed colors.
Party Mode: Rapid color changing building energy and excitement.
Romance Mode: Slow color transitions creating a mesmerizing and calming effect.
California Sunset Mode: Dramatic transitions of orange, red and magenta tones.
American Mode: Patriotic red, white and blue transition.
Caribbean Mode: Transitions between a variety of blues and greens.
Royal Mode: Lighter brighter color tones.
Blue: Fixed color.
Green: Fixed color.
Red: Fixed color.
White: Fixed color.
Magenta: Fixed color.
Save and Recall buttons
Use the Save and Recall buttons to capture a unique color effect and recall it at a later time.
Save button: Press this button to save the current colors while a color light show is active.
Recall button: Press this button to activate the last saved unique colors.

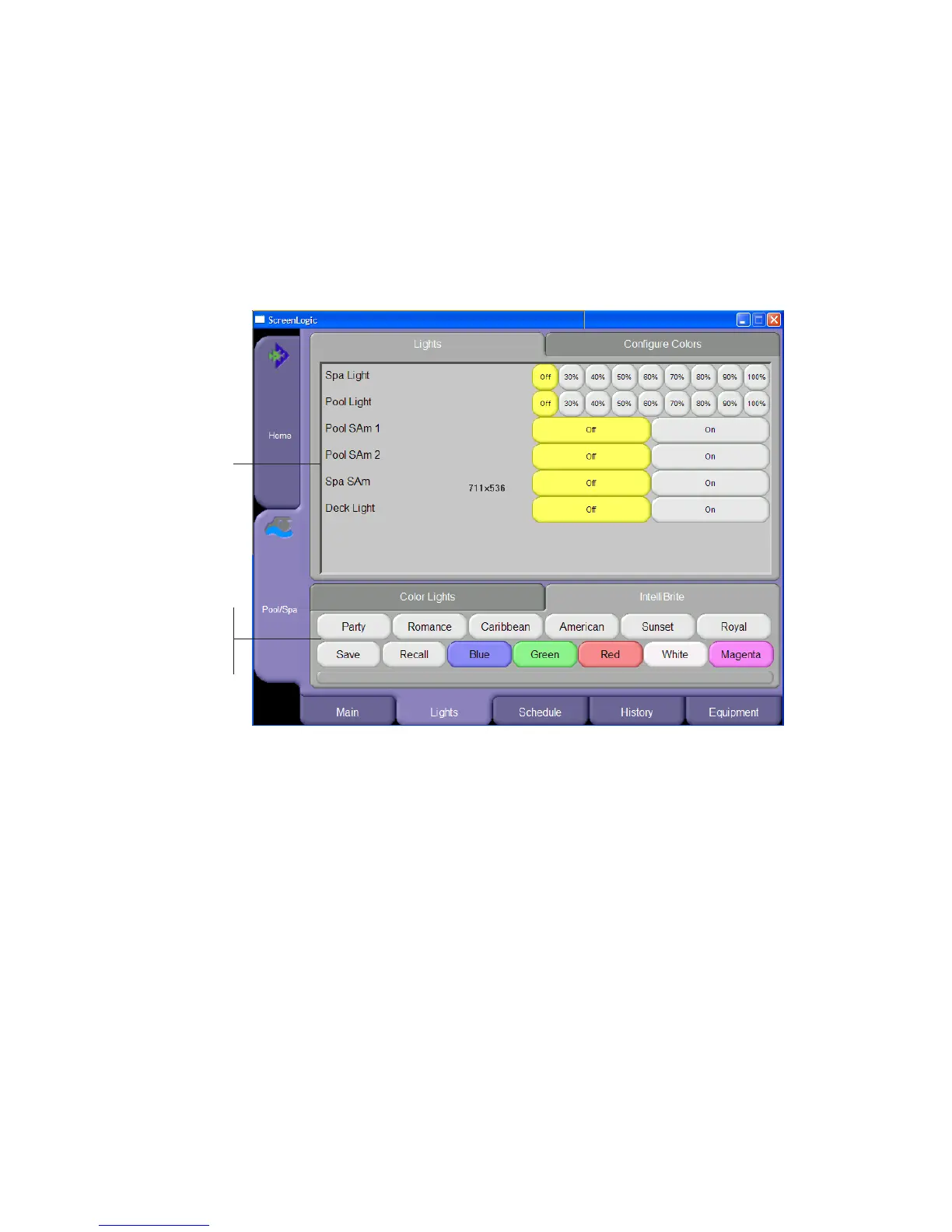

Color show mode
buttons.
Save/Recall and
fixed color buttons
Main lights screen
Displays standard
lights and IntelliBrite
light circuits
configured in the
Configurator utility
