INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
10
Service Mode
Service mode can be used for pool maintenance or service purposes. In Service mode,
normal operating mode AUTO is disabled and MANUAL mode is enabled (Yellow LED
on). The diverter can be moved anywhere from position 0 to 24 while in Service Mode;
even if custom set end points were established.
Service Mode: Press MODE button until the SERVICE LED turns on (Yellow LED).
• Press the Red arrow button or Yellow arrow button to manually move the
diverter to the desired position.
• Any diverter position made using the Red arrow button or Yellow arrow
button while in SERVICE mode is temporary.
• The actuator can be placed in OFF mode while in SERVICE mode.
• The actuator will remain in SERVICE mode until manually changed to
AUTO or SET mode using the MODE button..
Exit Service Mode: To exit SERVICE mode, press the MODE button.

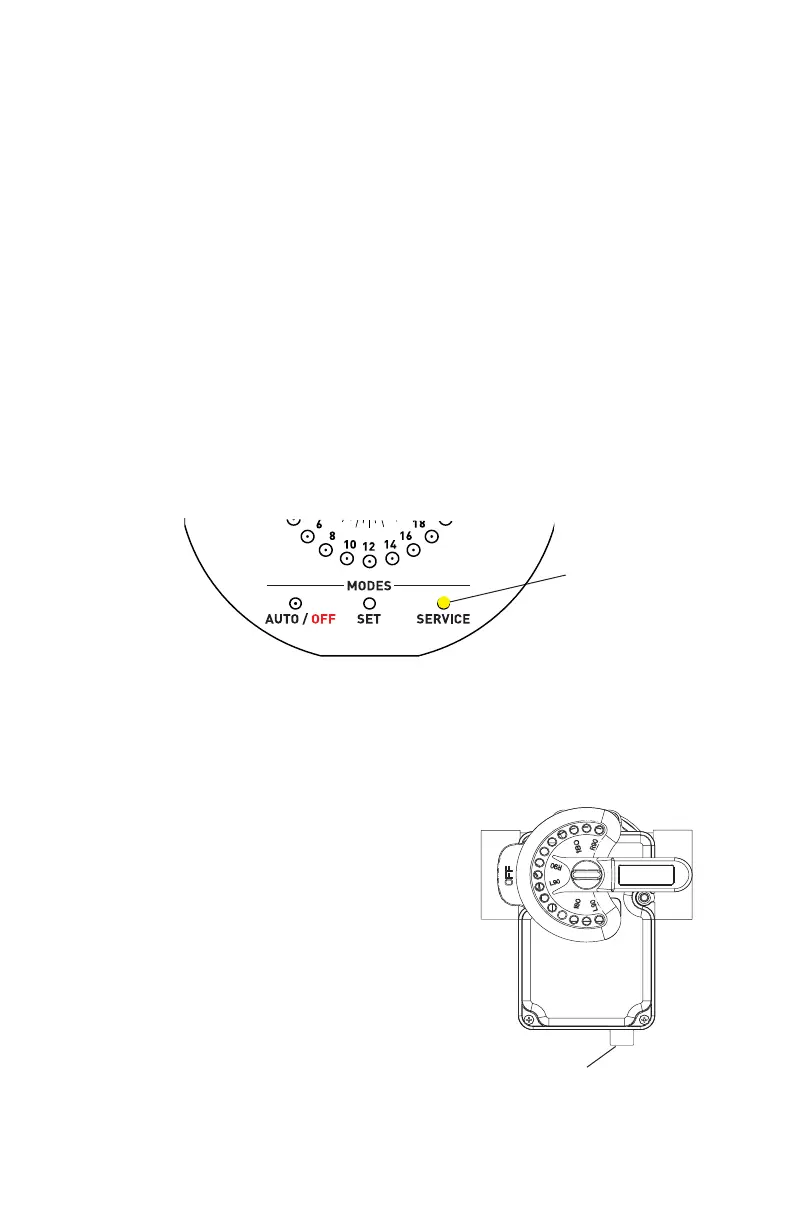

SERVICE MODE
(Yellow LED ON)
Service Mode (Yellow LED on)
Comparison to Standard Valve Actuator Toggle Switch (ON1 - ON2)
ON1 - ON2 Toggle Switch
The IntelliValve
™
Valve Actuator provides the
same functionality as the standard valve actuator
ON1 and ON2 toggle switch.
Flipping the toggle switch on a standard valve
actuator from ON1 to ON2 position is the same as
reversing the “HOME” position on the IntelliValve
actuator from Position 0 to Position 24.
(Standard valve actuator)
To Next Page
