Pentair INTELLIVALVE User Manual

INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
Valve diverter seal position 24

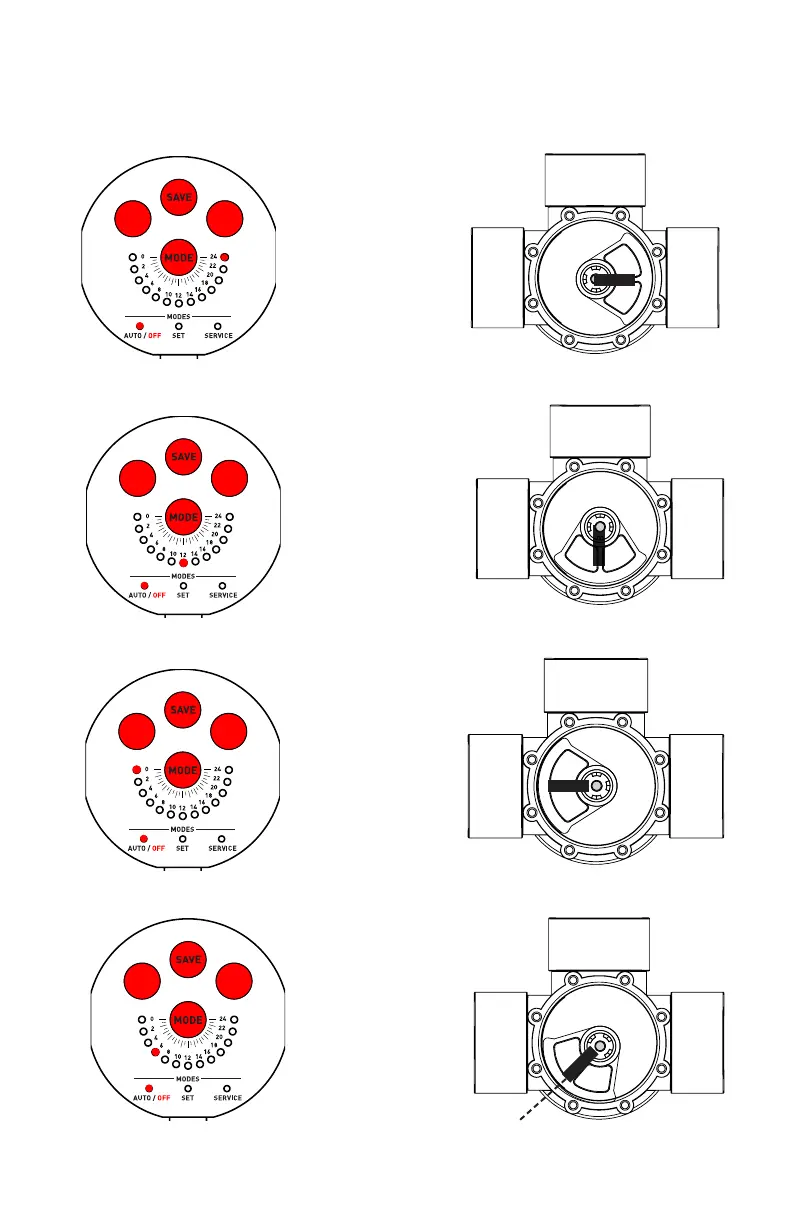

3-Way Valve: Diverter Position vs IntelliValve
™
Actuator LED position
The following illustrates the relative position of the IntelliValve Actuator position LEDs and
the 3-way valve diverter seal.




POSITION 6
Position 24 (LED
on) indicates the
div
erter restricts
water flow for total
shut off of the right
side outlet.
Position 0 (LED
on) indicates the
diverter restricts
water flow for total
shut off of the left
side outlet.
Position 12 (LED
on) indicates
no water flow
restriction through
the left and right
side outlets.
Valve diverter seal position 12
Valve diverter seal position 0
Valve diverter seal position 6
INLET
INLET
INLET
INLET
OUTLET
(Right)
OUTLET
(Left)
Position 6 (LED
on) indicates the
diverter partially
restricts water flow
out of the left side
outlet.
9
9
9
9
9 9
OUTLET
(Right)
OUTLET
(Left)
OUTLET
(Right)
OUTLET
(Left)
OUTLET
(Right)
OUTLET
(Left)
13




