Pentair INTELLIVALVE User Manual

INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
INLET
3-Way Valve: Diverter Position vs IntelliValve
™
Actuator LED position (Continued)

Position 16 (LED
on) indicates the
diverter partially
restricts water flow
out of the right side
outlet.
9 9
Valve diverter seal position 16

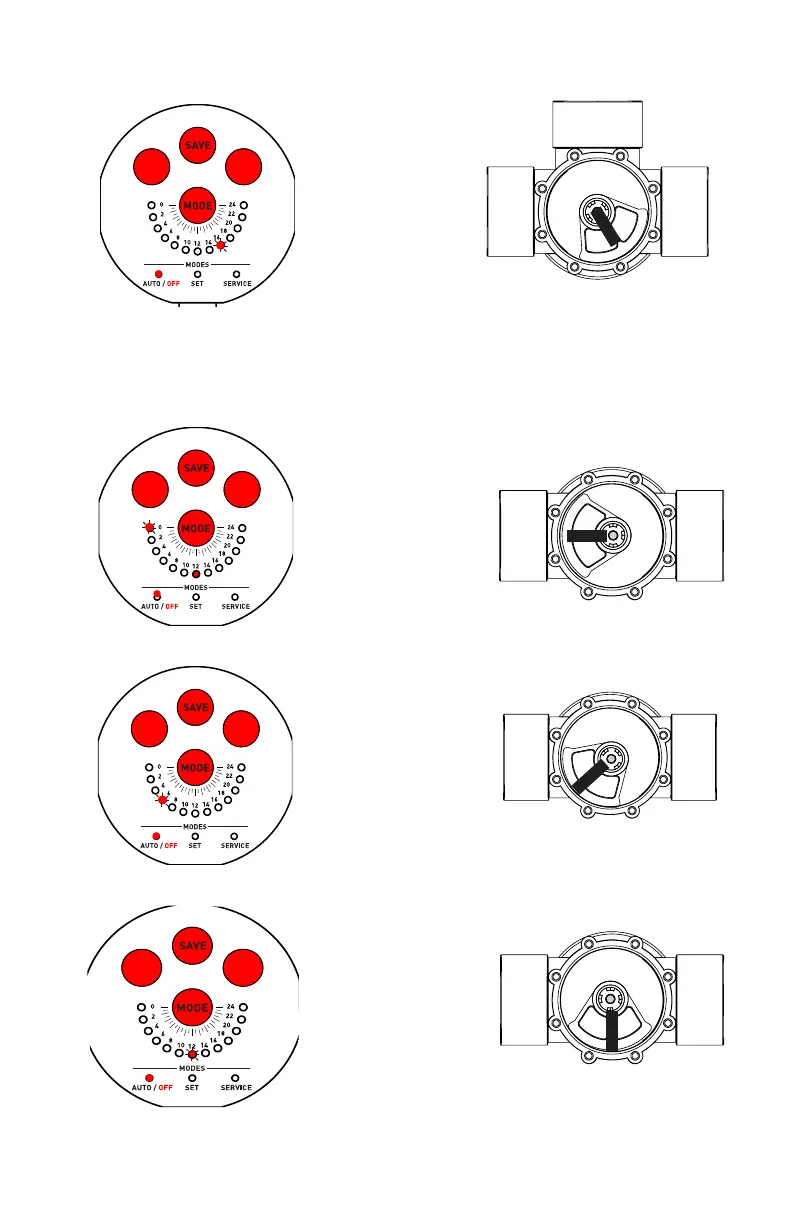

2-Way Valve: Diverter Position vs IntelliValve Actuator LED position
The following illustrates the relative position of the IntelliValve Actuator position LEDs and
the 2-way valve diverter seal.
Position 6 (LED
on) indicates the
diverter partially
restricts water flow
through the valve
inlet.
Position 0 (LED
on) indicates the
diverter restricts
water flow for total
shut off.


INLET INLET
OUTLETOUTLET
OUTLET
(Right)
OUTLET
(Left)
Position 12 (LED on)
indicates the water
flows through the
valve unrestricted.

INLET
OUTLET
Valve diverter seal position 6
Valve diverter seal position 0
Valve diverter seal position 12
14




