INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
15

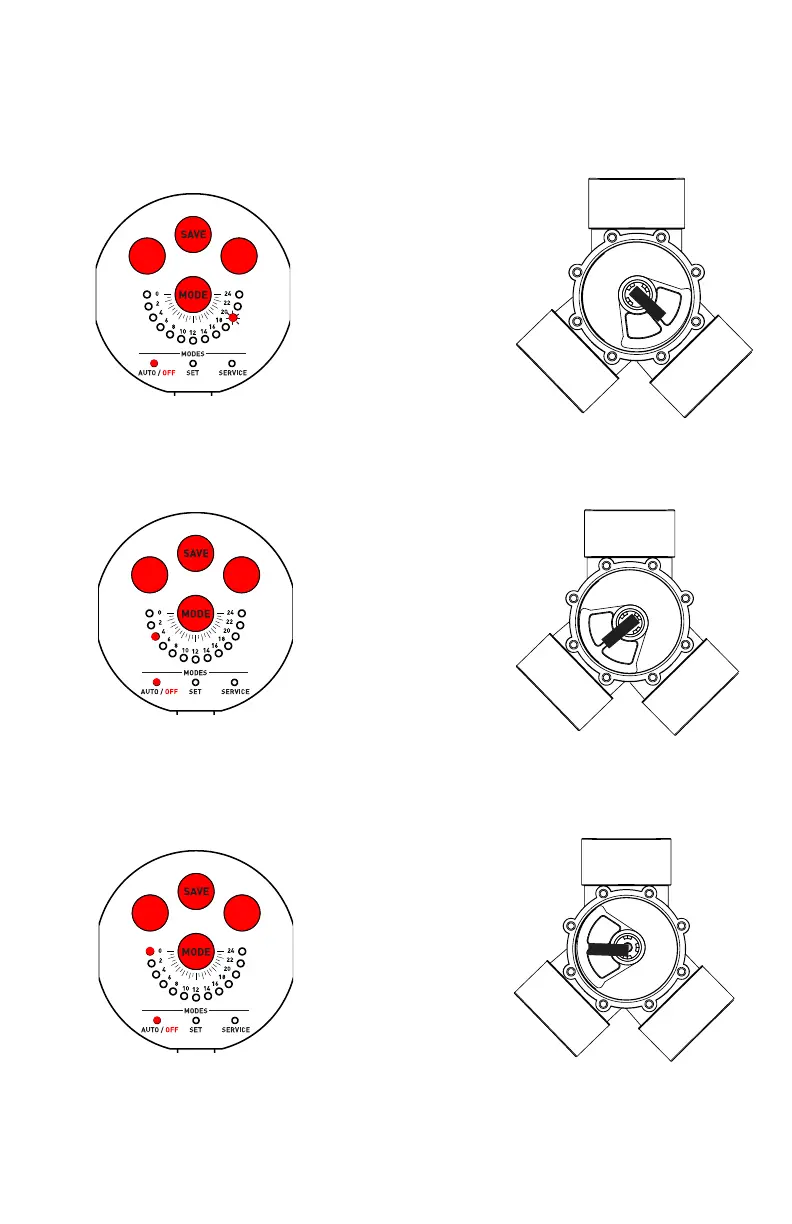

3-Way Y Valve: Diverter Position vs IntelliValve
™
Actuator
LED position
The following illustrates the relative position of the IntelliValve Actuator position LEDs
and the 3-Way Y valve diverter seal.
Position 4 (LED
on) indicates the
diverter restricts
water flow for total
shut off of the left
side outlet.
INLET
INLET
INLET
OUTLET
RIGHT
OUTLET
LEFT
OUTLET
OUTLET
OUTLET
OUTLET
Position 20 (LED
on) indicates the
diverter restricts
water flow for total
shut off of the right
side outlet.
Pposition 0 (LED on)
indicates the diverter
partially restricts water
flow out of the left side
outlet. The water flow
out of the right side
outlet is unrestricted.






Valve diverter seal position 20
Valve diverter seal position 4
Valve diverter seal position 0
