Pentair INTELLIVALVE User Manual

INTELLIVALVE
™
Valve Actuator Installation and User’s Guide

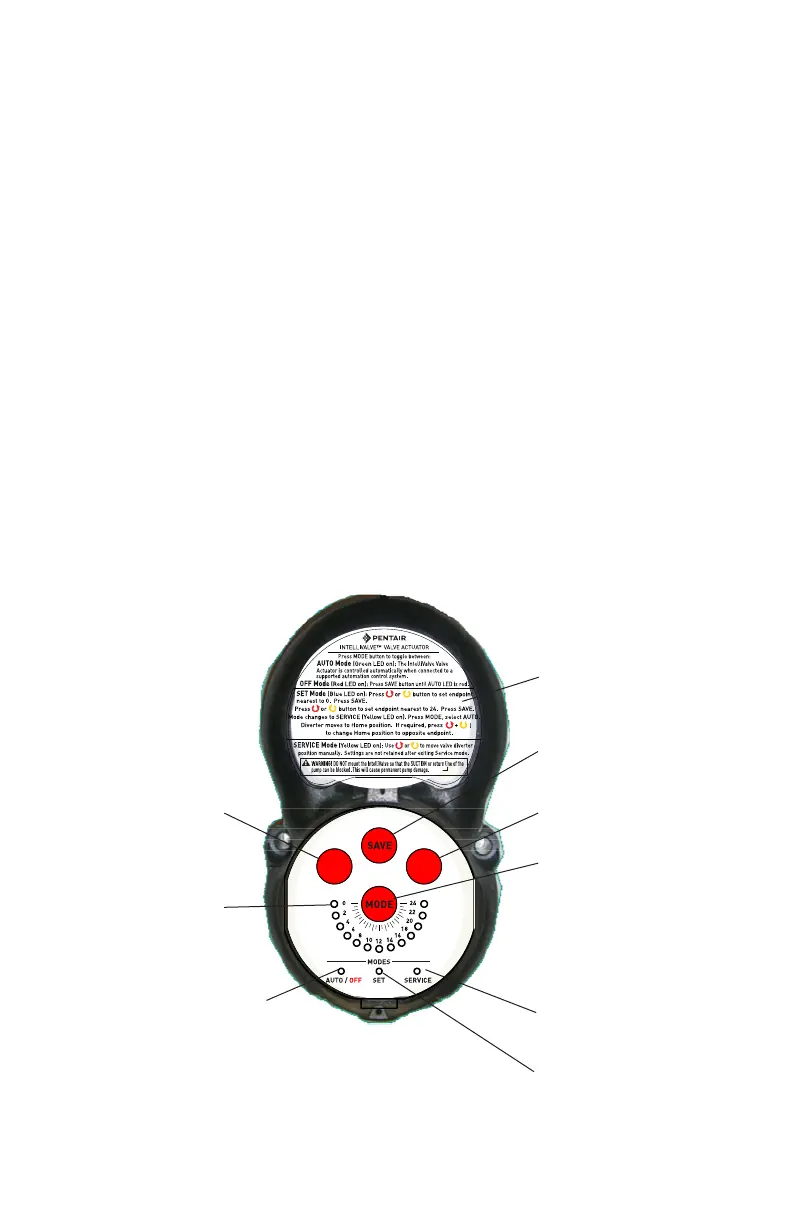

IntelliValve Valve Actuator Control Pad
4
IntelliValve
™
Valve Actuator Overview
From the control pad the IntelliValve valve actuator provides easy setup and control
of your diverter valve for pool and spa combinations, fountains, and water features.
IntelliValve valve actuator supports Pentair, Compool
®
, Ortega
®
or Jandy
®
diverter valves
and is compatible with all 24 VAC control systems.
Features
• 24 Volt 50/60 Hz. 0.75 electronically controlled motorized valve actuator
• Easy access operator control pad for quick diverter positioning
• LEDs indicate diverter location and travel end point positions
• 46 possible set positions (approximately every 3.75 degrees) indicated by
24 diverter position LEDs.
• Retrofit for all pool/spa diverter valves
• Fits all industry standard compatible diverter valves for pool/spa and pool/
water feature combinations
• 20 ft. Power Cable
The IntelliValve Valve Actuator is an electronically controlled motorized valve actuator
which rotates the diverter valve to a set position for the desired proportion of water flow
for various applications.
AUTO
OFF
SERVICE
MODE
0
24
2
4
6
8
10
12
14
16
18
20
22
LR
SET
CCW/CW
SAVE
X
CW
X
CCW
SAVE
(Save settings button)
Yellow arrow button
(Clockwise diverter rotation)
Operation Instructions
Mode button (Toggles
between AUTO, SET,
and SERVICE modes.)
0-24 Red LEDs
SERVICE mode LED
(Yellow)
SET mode LED (Blue)
Red arrow button
(Counterclockwise
diverter rotation)
Auto mode LED Green
OFF mode LED Red
