INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
Connecting Power to the IntelliValve
™
Valve Actuator
(EasyTouch
®
and IntelliTouch
®
Control Systems)
After the IntelliValve valve actuator is mounted on to each of the valve assemblies,
connect each IntelliValve Valve Actuator 24 V power cable to the 3-pin power sockets
on the automation control system circuit board.
The EasyTouch
®
and IntelliTouch
®
Control Systems can control up to four automatic
valve actuators via a RS-485 four conductor connection. Two of the standard valve
outputs are dedicated to the pool/spa INTAKE and RETURN valves. Valve A or Valve B
actuators are for general purpose use (solar, water-feature, in-floor cleaner, etc.).
EasyTouch Control System:
1. At the Load Center route the 20 ft. IntellliValve actuator power cable up
through the Load Center 1” grommet and low voltage raceway to the
circuit board.
2. EasyTouch
Control System Circuit Board (Return and Intake Valve):
Connect the IntelliValve valve actuator power cable connector to the
RETURN and/or the INTAKE (suction) 3-pin socket. If required, there
are two optional valve 3-pin sockets available (Valve A and Valve B).
Excess cable can be coiled in the enclosure low voltage raceway left
side compartment. Do not coil the conductor in upper low voltage
compartment. For valve actuator circuit board socket location see
diagram below.
BEFORE INSTALLATION OR SERVICING THE INTELLIVALVE
®
VALVE ACTUATOR - Always disconnect
power at the circuit breaker before servicing. Failure to do so could result in death or serious injury
to service person, pool users or others due to electric shock.
NOTE: This device must be installed by a licensed or certified electrician or a qualified pool professional in
accordance with the National Electrical Code (NEC), NFPA 70 or the Canadian Electrical Code (CEC), CSA C22.1.

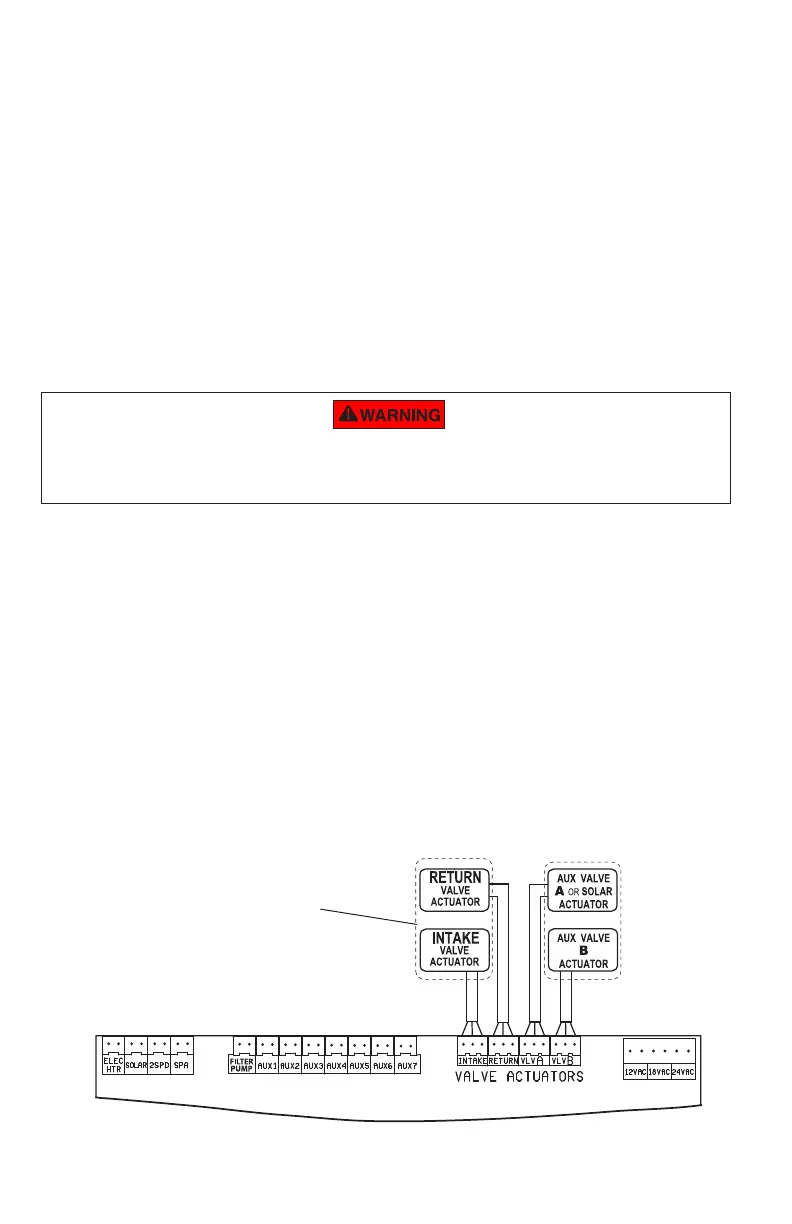

EasyTouch Control System Circuit Board
EasyTouch Control System Circuit Board
17
Connect IntelliValve
power cable connector
to Return and Intake
valve 3-pin Socket
