INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
16
INLET
INLET

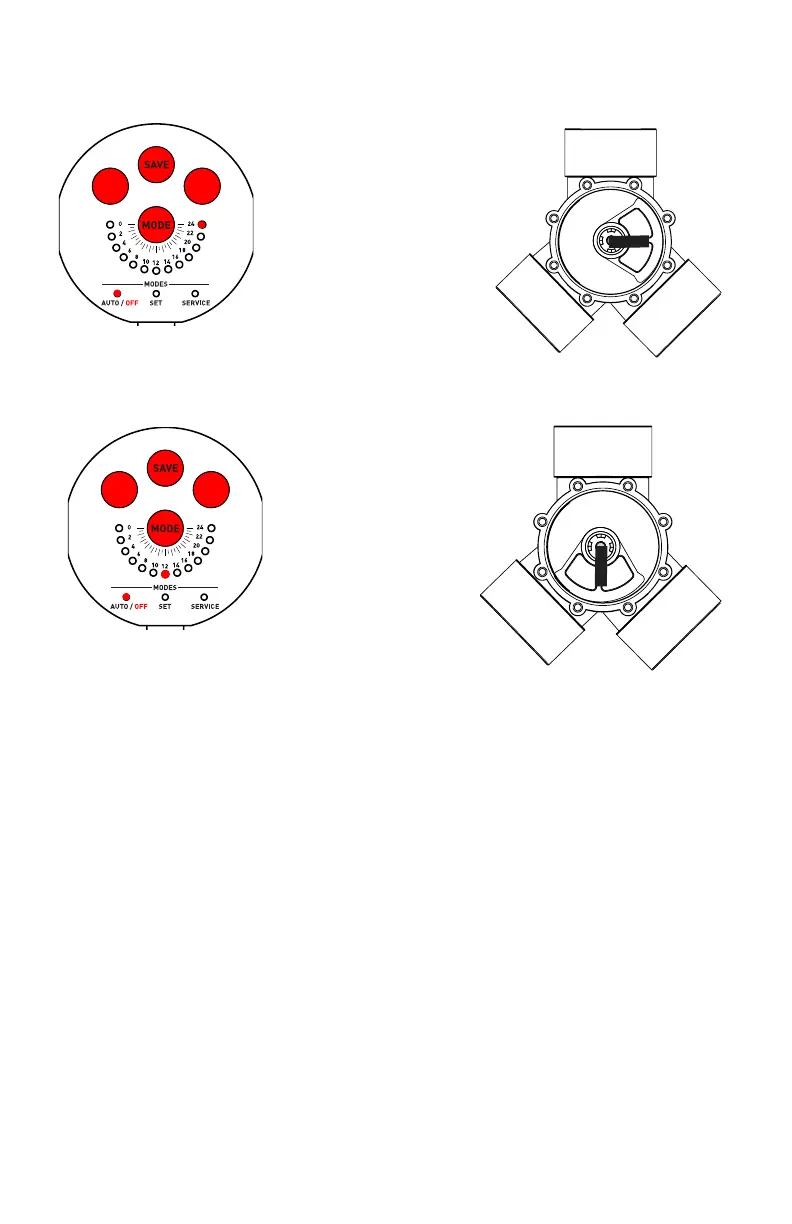

Position 24 (LED on)
indicates the diverter
partially restricts water
flow out of the right
side outlet. The water
flow out of the left side
outlet is unrestricted.
Position 12 (LED
on) indicates the
diverter partially
restricts water flow
out of the left and
right side valve.
OUTLET
OUTLET
OUTLET
OUTLET
3-Way Y Valve: Diverter Position vs IntelliValve Actuator LED position (Continued)
Valve diverter seal position 24
Valve diverter seal position 12
