INTELLIVALVE
™
Valve Actuator Installation and User’s Guide
Installing the IntelliValve
™
Valve Actuator (Continued)
3. Mount the IntelliValve valve actuator onto the valve assembly and
secure it with the four 2¼ inch mounting screws provided. See Figure 5
and Figure 6. Note: DO NOT over tighten the mounting screws.

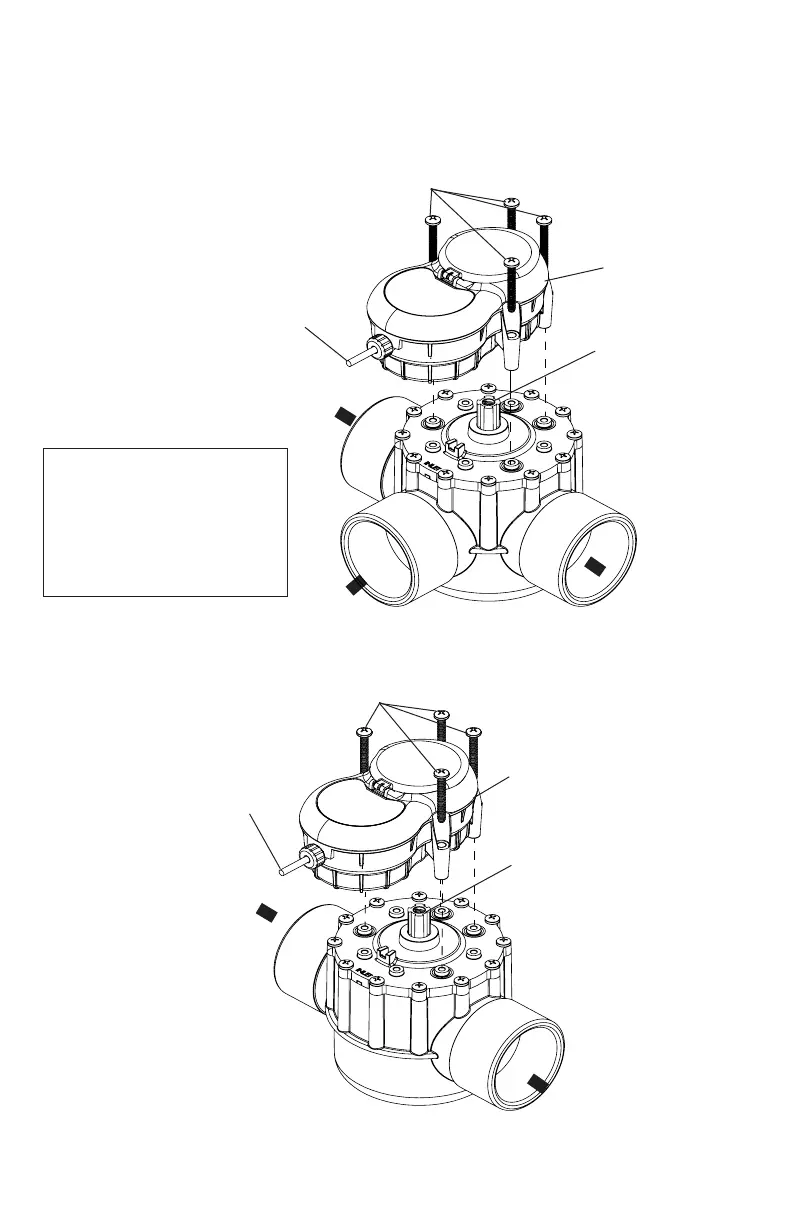

Figure 5. IntelliValve Valve Actuator Mounted on a 3-Port Valve assembly
CAUTION: DO NOT mount
the IntelliValve so that the
suction or return line of
the pump can be blocked.
This will cause permanent
pump damage.
Figure 6. IntelliValve Valve Actuator Mounted on a 2-Port Valve assembly
Mounting
screw (x4)
INLET

OUTLET
SPLINE
IntellliValve
Valve
Actuator

Mounting screw (x4)

INLET

POOL
RETURN
SPA RETURN
SPLINE
IntellliValve
Valve
Actuator

20 ft. power cable plug (3-pin)
Connect to automation
control system circuit board
(see page 17)
20 ft. power cable plug (3-pin)
Connect to automation
control system circuit board
(see page 17)
7
