Pentax W-1502N Series User Manual

65
4

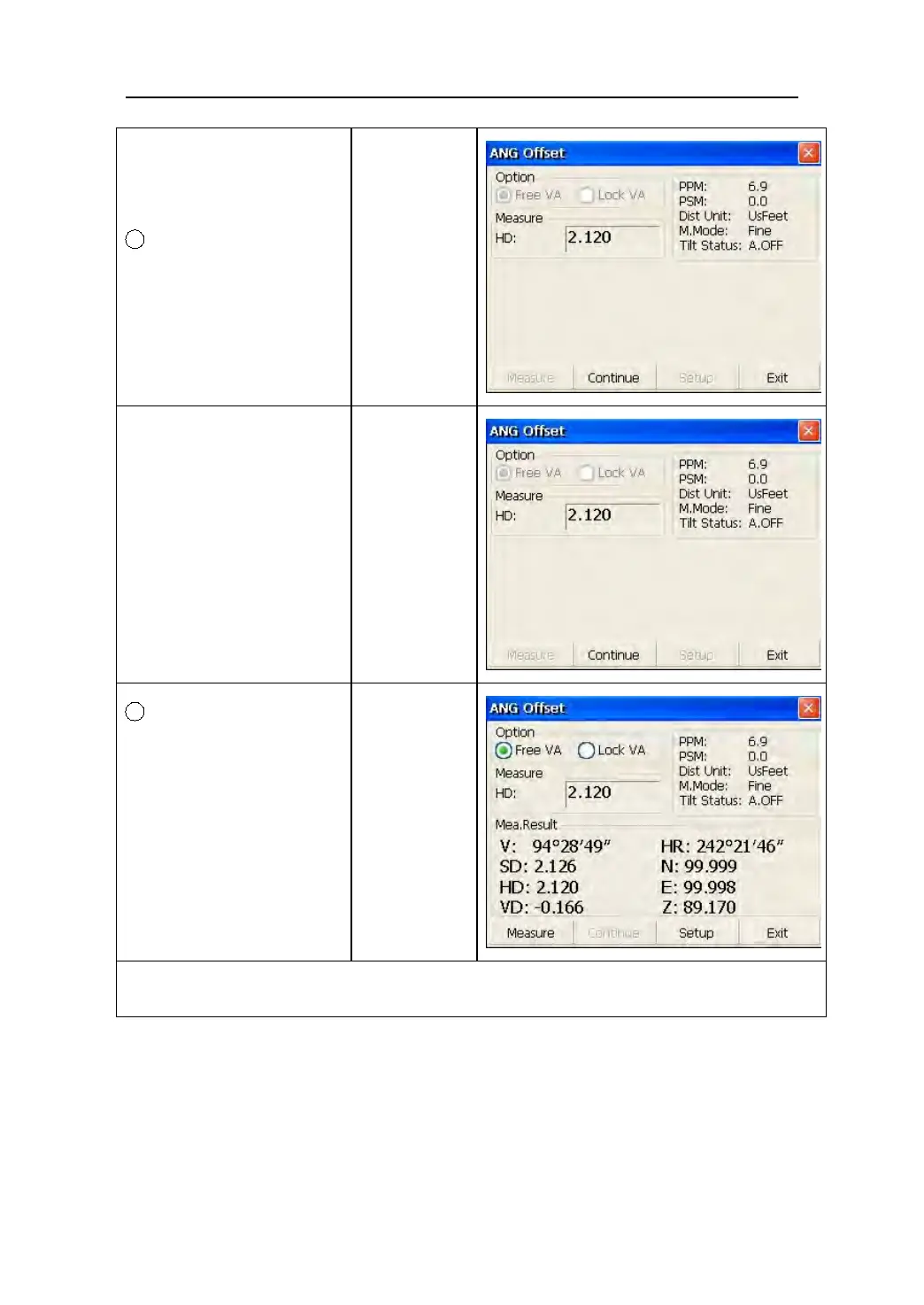

Collimate prism
P,and click
“Measure” key.
Collimate
prism P
⑤Collimate target A0
with horizontal clamp
and tangent part.
Collimate
A0
5
Click “Continue”
key.Then slope
distance,horizontal
distance and
elevation difference
from instrument to
A0 and coordinate of
A0 will be shown.
※
1)
，※
2)
【
Continue
】
※1) Click “Setup” key to set instrument height and prism height.
※2)Click “Exit” to finish Angle Offset Measurement
●
Set instrument height/prism height before Offset Measurement.
●
Refer to “4.5.1” to set coordinate of occupied point.
2) Distance Offset Measurement
The measurement of a target point apart from a prism is possible by
inputting offset horizontal distance of front and back/left and right.
