Percussionaire IPV-2C - In-Line Valve and Phasitron5 Integration

18

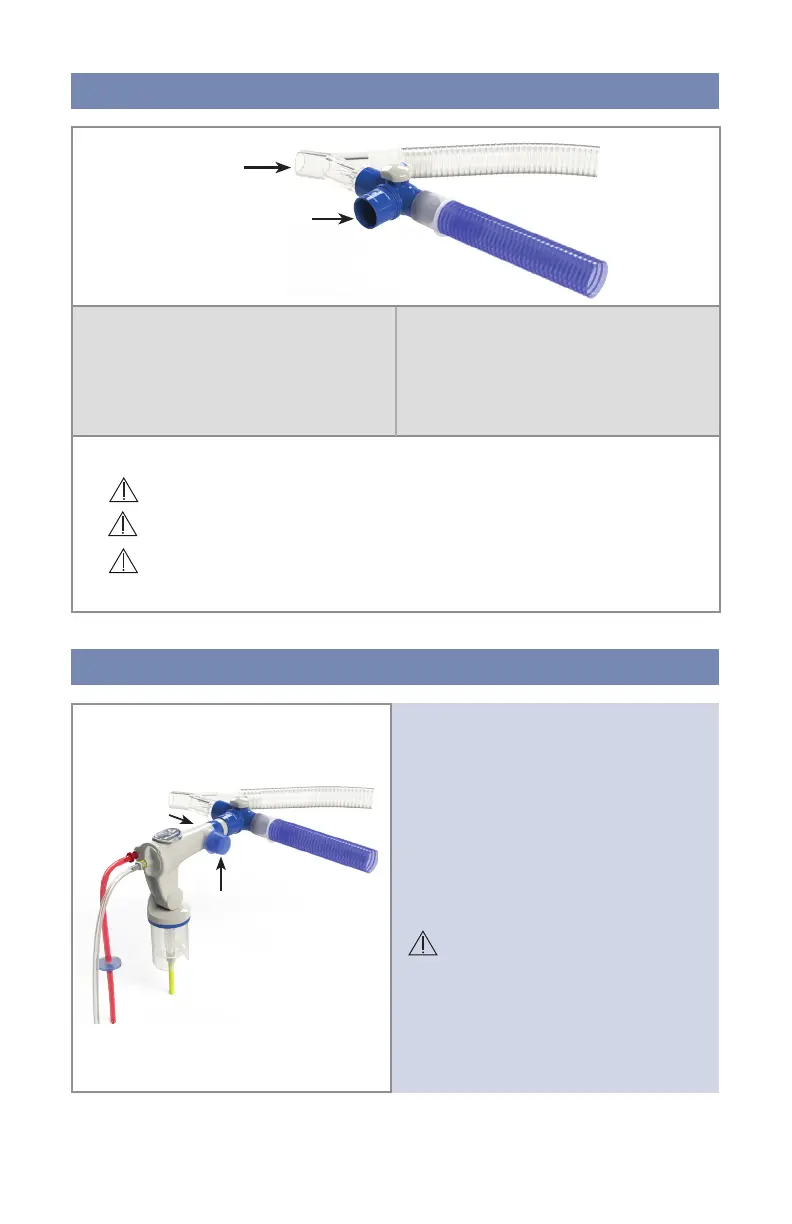

TRUE-IPV® In-Line Valve Setup
Adding Phasitron®5 to In-Line Valve
Neonatal
Recommended to install
between heater and
inspiratory limb.
Pediatric to Adult
Recommended to install
as close to the patient
wye as allowable
Insert TRUE-IPV® In-Line Valve into inspiratory limb of ventilator circuit.
WARNING: Ensure Pressure Relief valve is closed.
WARNING: Allow ventilator to cycle with valve in place.
WARNING: Ensure TRUE-IPV® In-Line Valve is inserted into
inspiratory side of ventilator circuit.
Phasitron® port
connection
Patient
connection wye
Installation of
TRUE-IPV® In-Line
Valve with
Phasitron® 5
Press Blue cap
over Phasitron® 5
expiratory port.
Blue cap
supplied with
In-Line Valve kit.
Install provided blue cap (color may
vary) onto the Phasitron®5 expiratory
port. Port must be occluded for proper
use and treatment. The cap is provided
with TRUE-IPV® In-Line Valve kit.
Fill nebulizer with 15 to 20 cc normal
saline or prescribed medication.
Aerosol consumption approximately
.75 cc per minute.
WARNING: Blue cap must be
removed when giving a direct treatment,
either by mouth, mask or directly
connected to endotracheal tube.
