Lumina XRMS Series III Hardware Manual Chapter 8 | Fluorescence Module 59
The fluorescence light source module (Figure 8.3) provides the fluorescence excitation light. This
light source consists of a 150-watt quartz tungsten halogen lamp with a dichroic reflector. Figure 8.4
shows the relative spectral radiance output of the lamp/ reflector combination and indicates emission
throughout the IVIS Lumina XRMS wavelength range of 400-950 nm. The EKE-ER lamp provides
improved light output in the 400-950nm range compared to the standard EKE lamp. Because of the
higher temperature of the ER lamps, a high temperature fiber optic is used to deliver the light to the
excitation filter wheel.

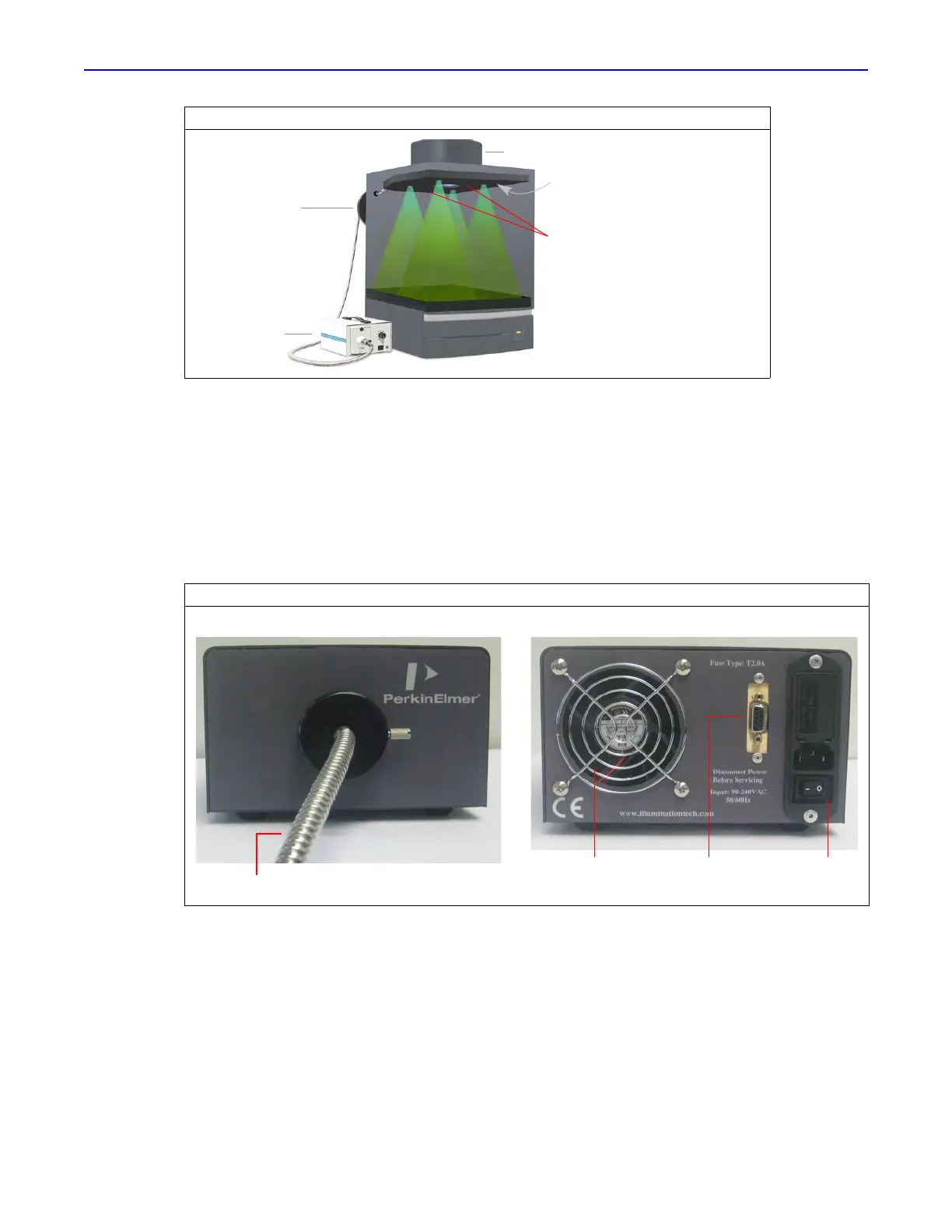

Figure 8.2 IVIS Lumina XRMS Series III and Fluorescence Equipment
Figure 8.3 Fluorescence Light Source Module
Excitation filter
wheel assembly
Light source
module
Emission filter wheel assembly
Reflectors
CCD camera
Fiber optic cable
DB89 connector
for control cable
Fan
ON/OFF power
switch
Front view Rear view
