Explorer Mini
Repairs - Seat
4.4.2 Installing the seat
The center of gravity is affected when the seat is installed.
The table and backrest unit must be in the highest position before you
can install the seat. Otherwise there will not be enough space to install
the seat.
1. Put the table and backrest unit in its highest position. For
instructions on how to adjust the height of the table and backrest
unit, see 5.1.2.1
Adjusting the height of the table and backrest unit
.

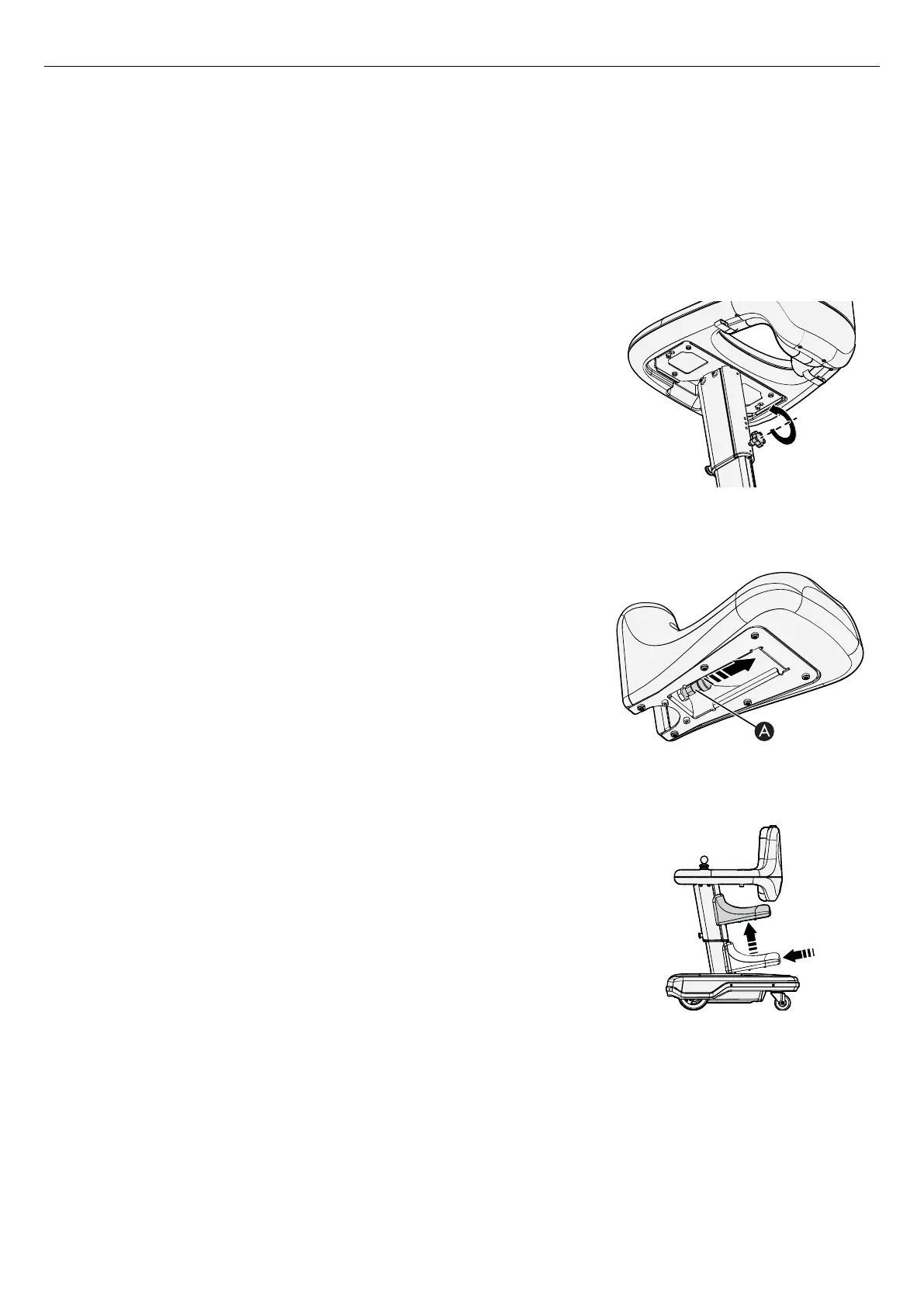

Figure 15. Remove the tightening knob from the column.
2. Remove the tightening knob from the column.
Figure 16. Pull out the plunger knob (A) from the seat.
3. Pull out the plunger knob (A).
Figure 17. Push the seat into the groove on the column.
4. Push the seat into the groove on the column.
5. Carefully move the seat up or down to a setting.
