Explorer Mini Repairs - Drive wheels
4.7 Drive wheels
4.7.1 Removing the drive wheels
The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 5 mm.

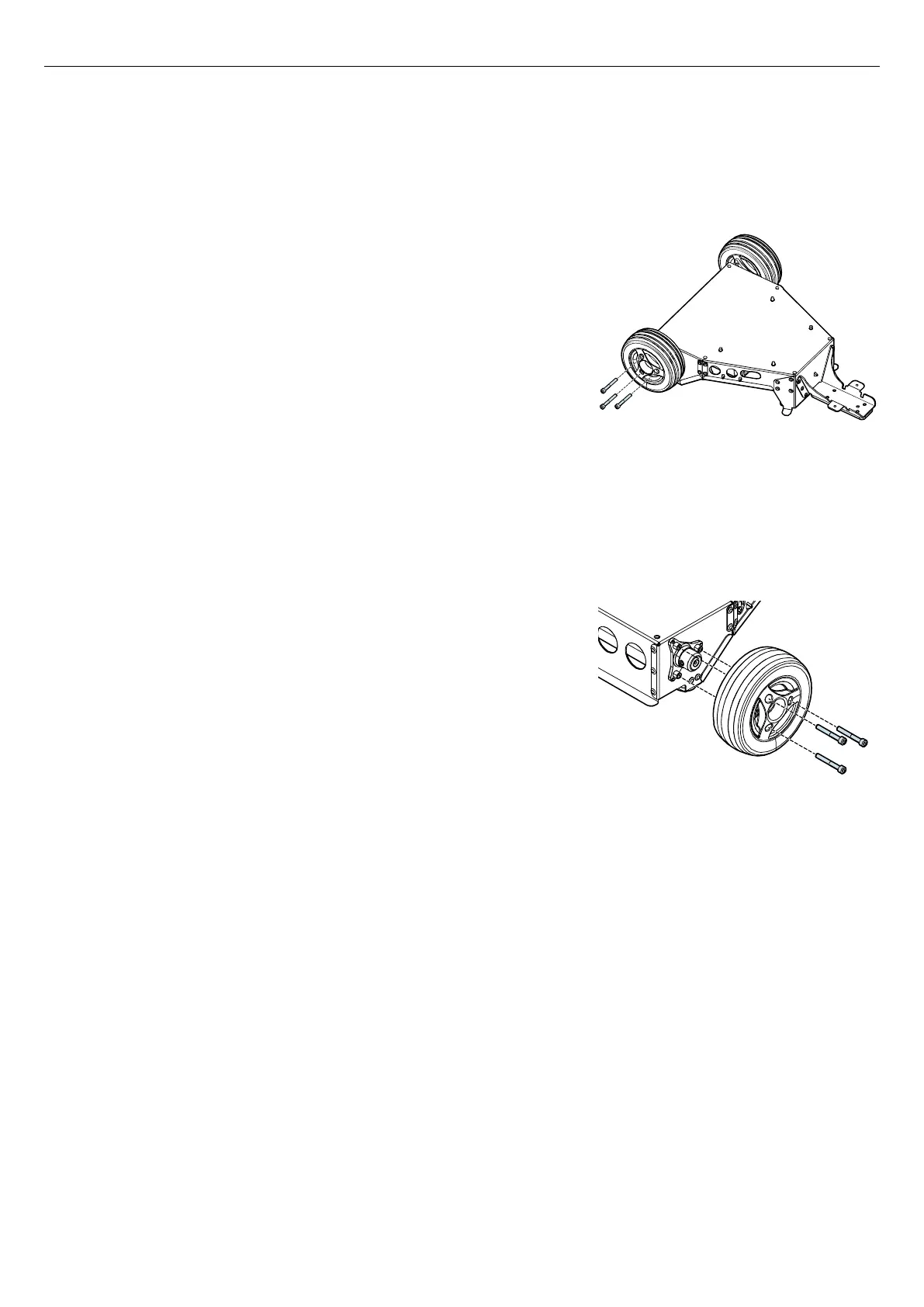

Figure 74. Drive wheels.
Each drive wheel is attached with three screws.
1. Remove the top cover. For instructions, see
4.6.1.1
Removing the top cover .
2. Remove the bottom cover. For instructions, see
4.6.2.1
Removing the bottom cover .
Figure 75. Remove the three screws from each drive
wheel.
3. Remove the three screws from each drive wheel and remove each
drive wheel.
