4.11.3 Installing the main circuit breaker
• Torque wrench.
• Torx T8 socket.
• Pliers.

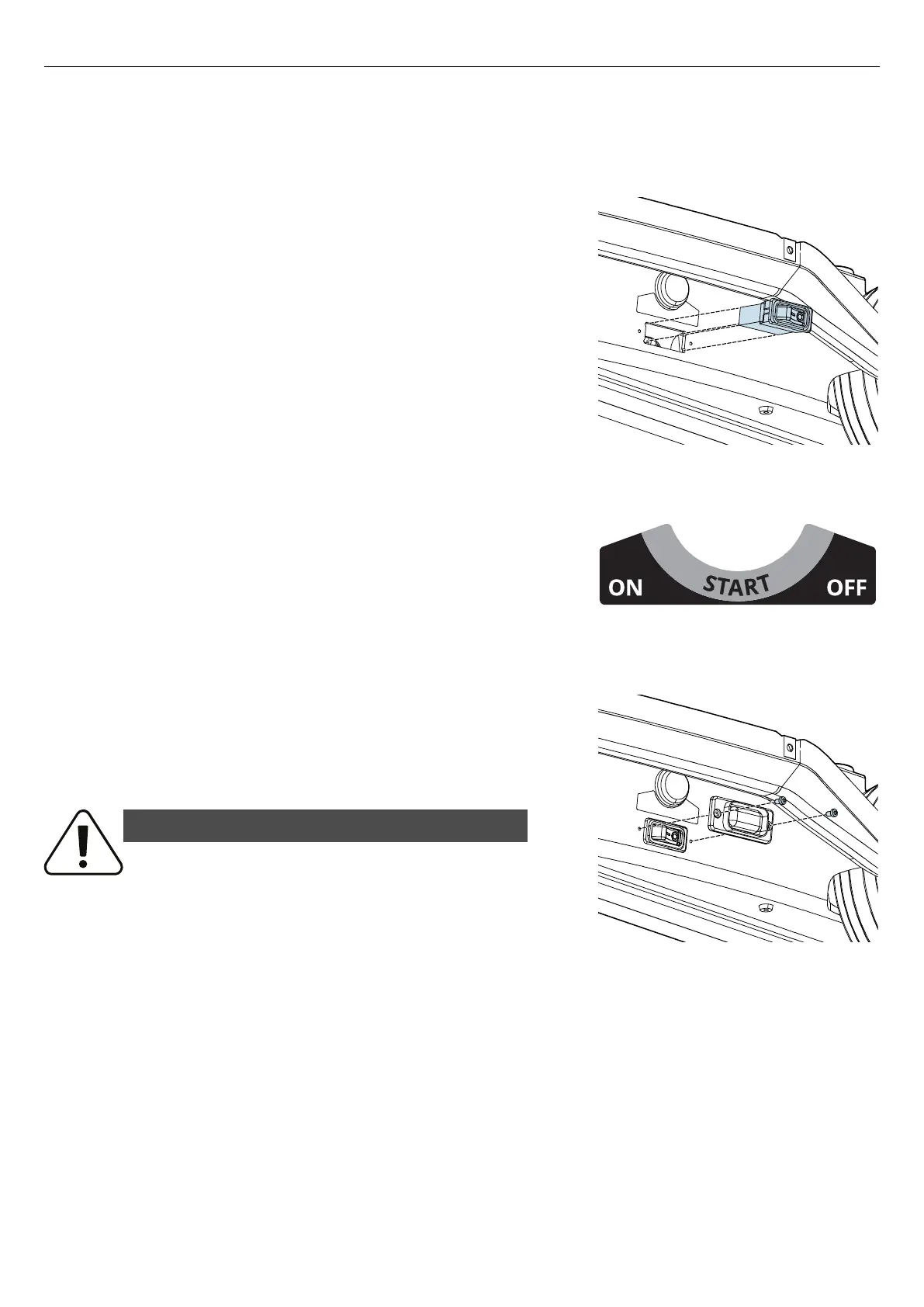

Figure 111. Attach the main circuit breaker.
1. Snap the main circuit breaker in place to attach it in the hole of the
bottom cover.
Figure 112. Sticker for the main circuit breaker and the
start button.
2. Make sure that the on/off positions on the main circuit breaker
corresponds to the on/off positions on the sticker.
Figure 113. Attach the cover on the main circuit
breaker.
3. Attach the cover on the main circuit breaker with the two screws.
Make sure that the on/off positions on the cover corresponds to the
on/off positions on the main circuit breaker. Tightening torque:
0.2 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
