4.13 nVR2 power module
4.13.1 Removing the nVR2 power module
The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 4 mm.
1. Remove the top cover. For instructions, see
4.6.1.1
Removing the top cover .

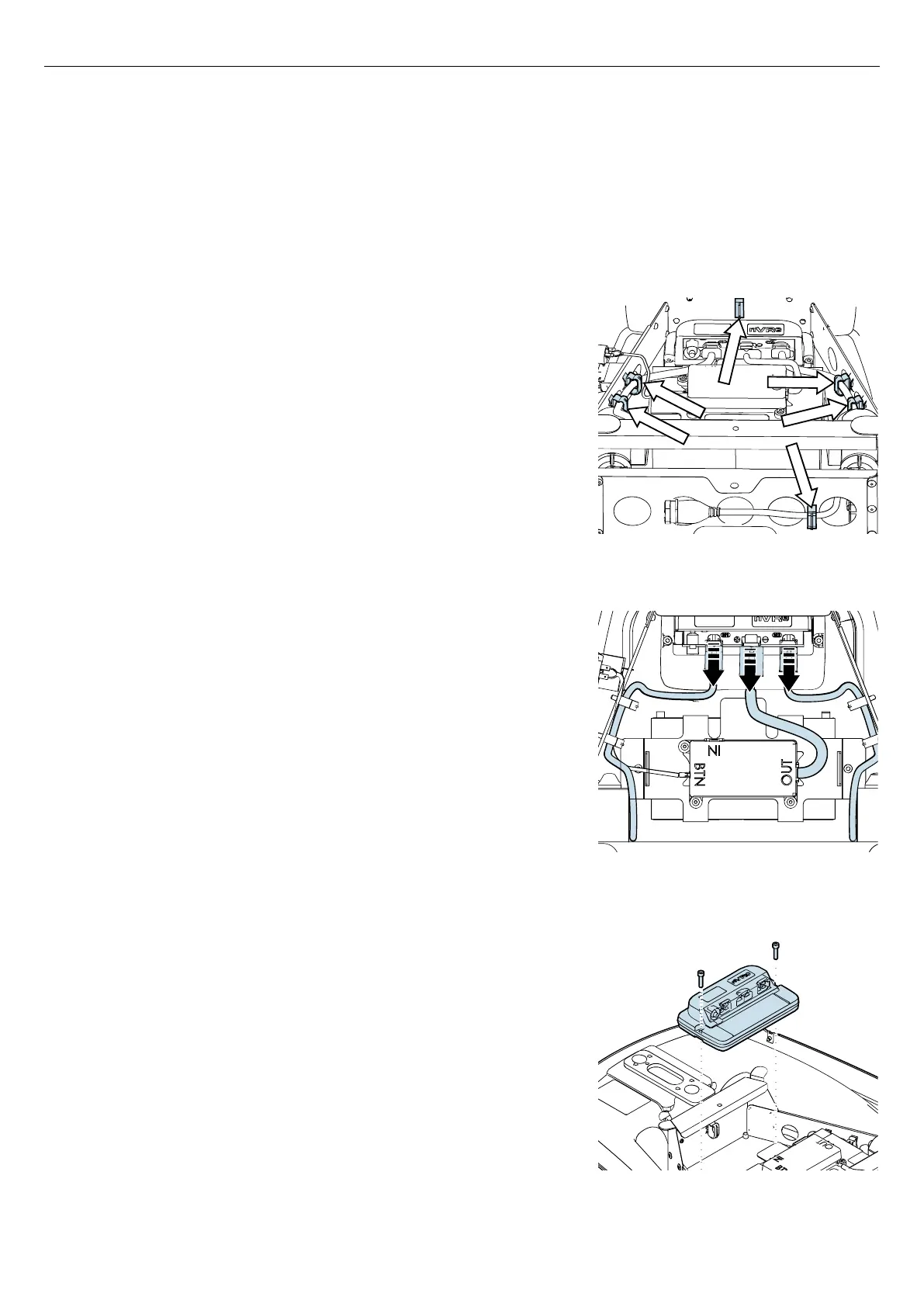

Figure 129. Positions of the cable holders.
2. Remove the cable to the control panel from the cable holders.
Figure 130. Disconnect the three cables.
3. Press the latches on the connector of each drive unit and the
batteries and disconnect the cables to the drive units and the
batteries from the nVR2 power module.
Figure 131. Remove the nVR2 power module.
4. Remove the two screws from the nVR2 power module and remove
the nVR2 power module.
