Explorer Mini
Repairs - Drive unit

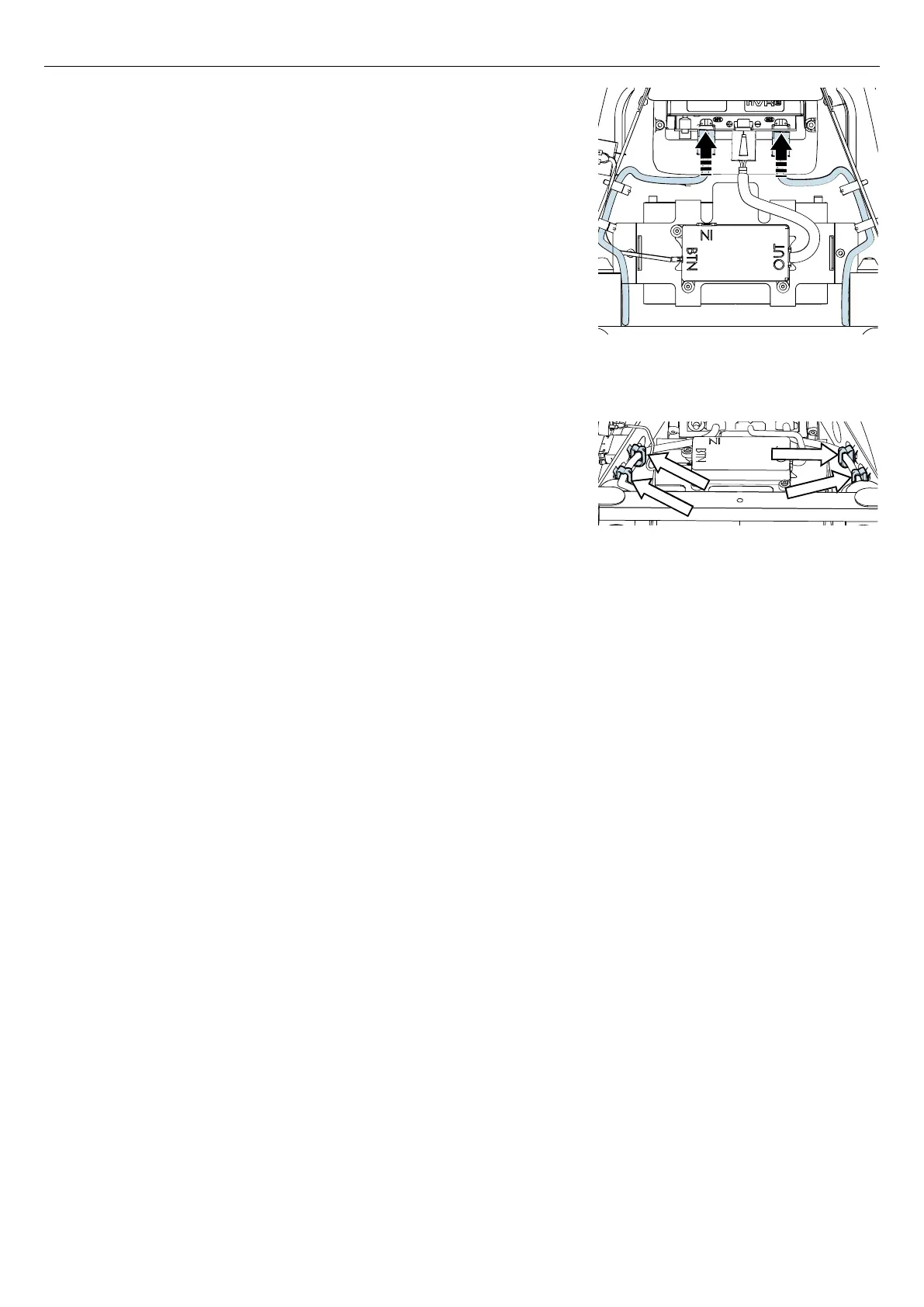

Figure 127. Connect the drive units to the nVR2 power
module.
4. Connect the cable of each drive unit to the nVR2 power module.
Make sure that the left and right output connector are connected to
the left and right drive unit.
Figure 128. Attach the cables to the cable holders on
the chassis.
5. Attach the cables to the cable holders on the chassis.
6. Install the drive wheels. For instructions, see
4.7.2
Installing the drive wheels
.
7. Install the bottom cover. For instructions, see
4.6.2.2
Installing the bottom cover
.
8. Install the top cover. For instructions, see
4.6.1.2
Installing the top cover
.
