Permobil Explorer Mini - Base Module; Top Cover

Explorer Mini Repairs - Base module
4.6 Base module

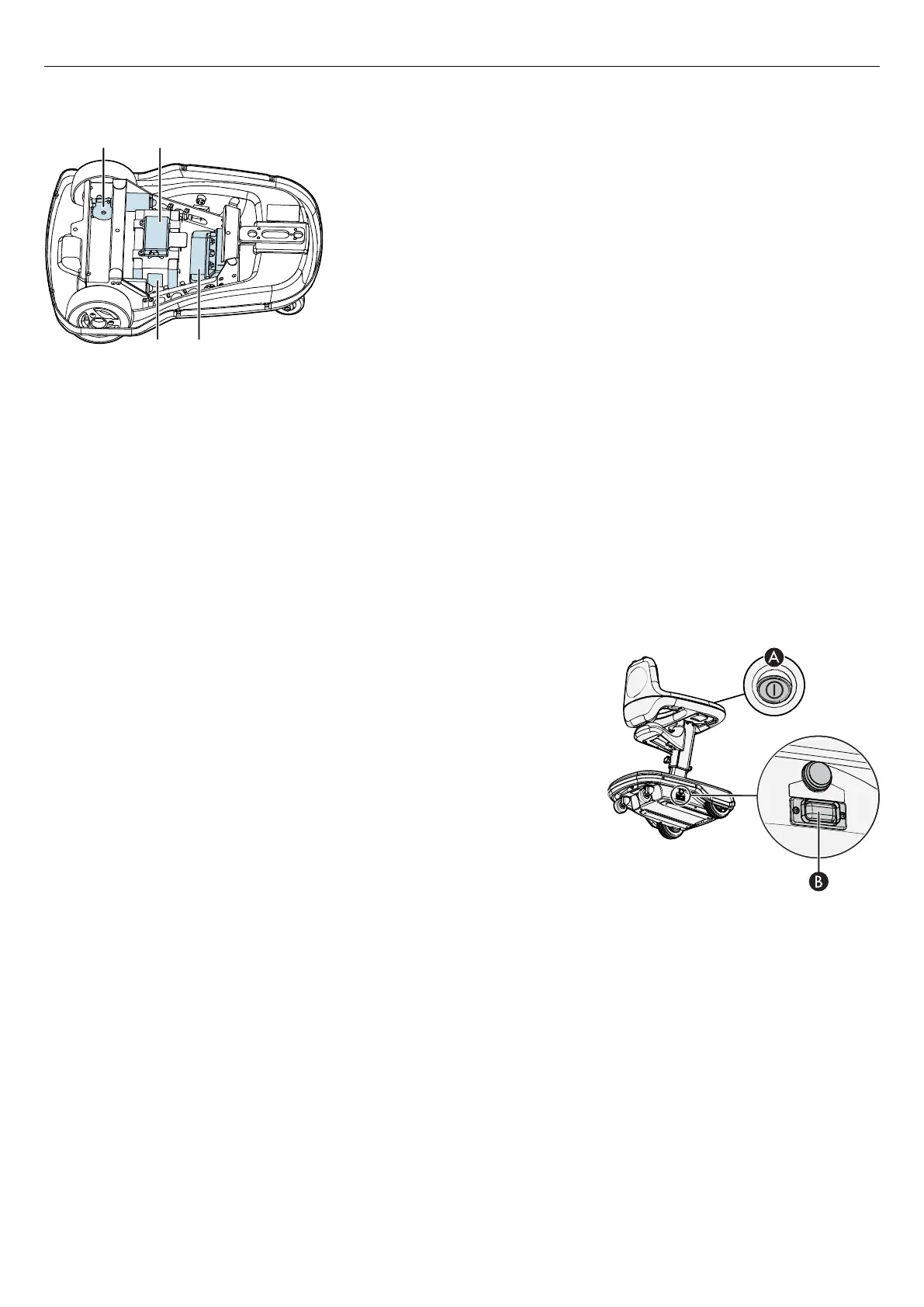

Figure 34. Base module overview.
A. Drive unit (one for each drive wheel)
B. Battery saving module
C. Batteries
D. nVR2 power module
4.6.1 Top cover
4.6.1.1 Removing the top cover
The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 2.5 mm.
• Allen socket, 4 mm.
• Slotted screwdriver or pliers.
1. Put the Explorer Mini on a flat surface.
Figure 35. Positions for the on/off button (A) and the
main circuit breaker (B).
2. Press the on/off button (A) to turn off the power.
3. Turn off the main circuit breaker (B).
4. Put the table and backrest unit in its highest position. For
instructions, see
5.1.2.1
Adjusting the height of the table and backrest unit .
A
B
C D
25
