4.10.2 Removing the batteries
• Torque wrench.
• Allen socket, 3 mm.
• Allen socket, 4 mm.
• Allen socket, 5 mm.
• Pliers.
1. Remove the top cover. For instructions, see
4.6.1.1
Removing the top cover .

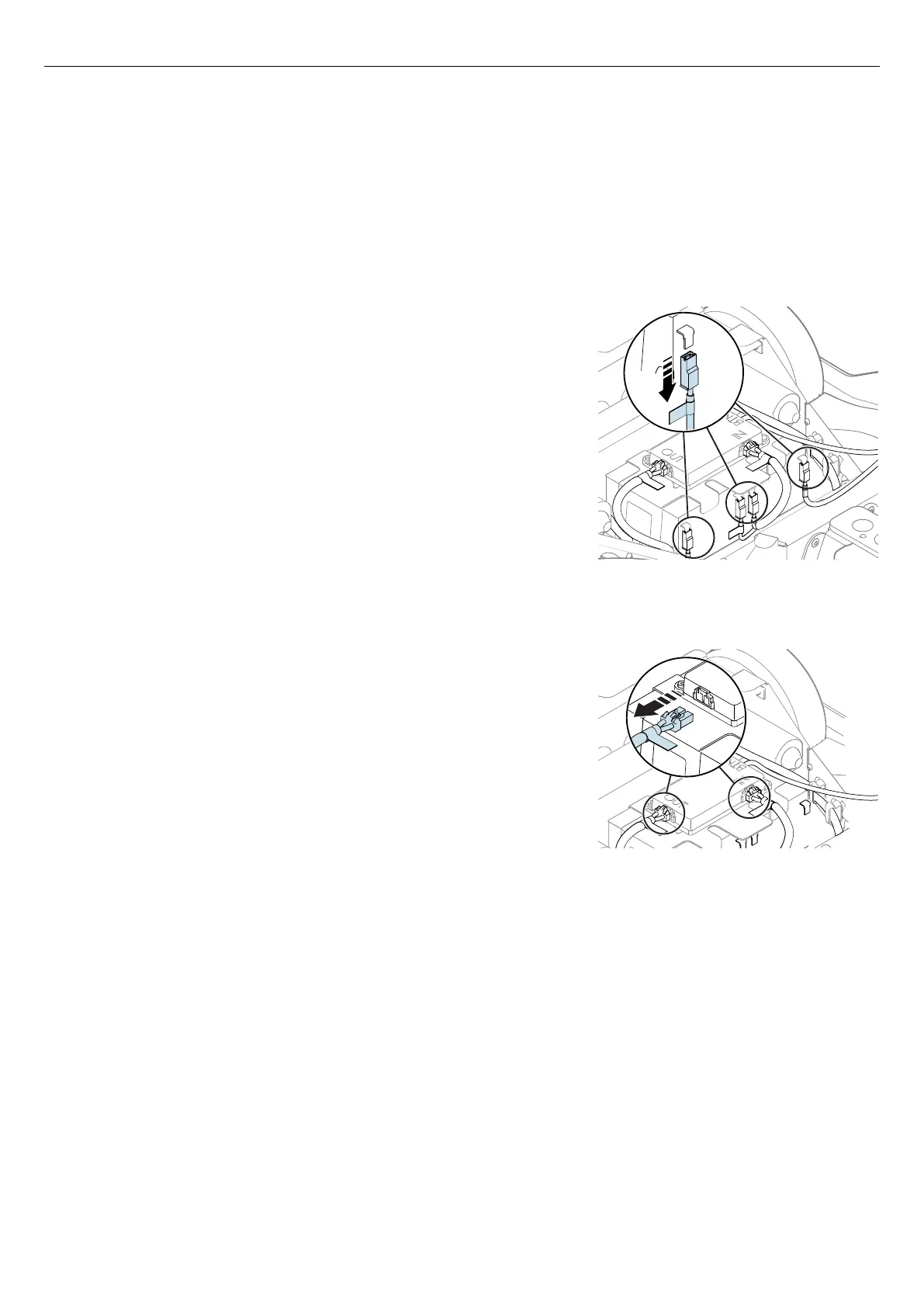

Figure 102. Disconnect the cables from the terminals of
the batteries.
2. Disconnect the cables from the terminals of the batteries. Make sure
you hold the connectors and not the cables when disconnecting
them.
Figure 103. Disconnect the cables from the battery
saving module.
3. Press the latches on the connectors and disconnect the cables from
the battery saving module.
