Permobil Explorer Mini - Installing the Batteries

Explorer Mini
Repairs - Batteries
4.10.3 Installing the batteries
• Torque wrench.
• Allen socket, 3 mm.
• Allen socket, 4 mm.
• Allen socket, 5 mm.
• Pliers.

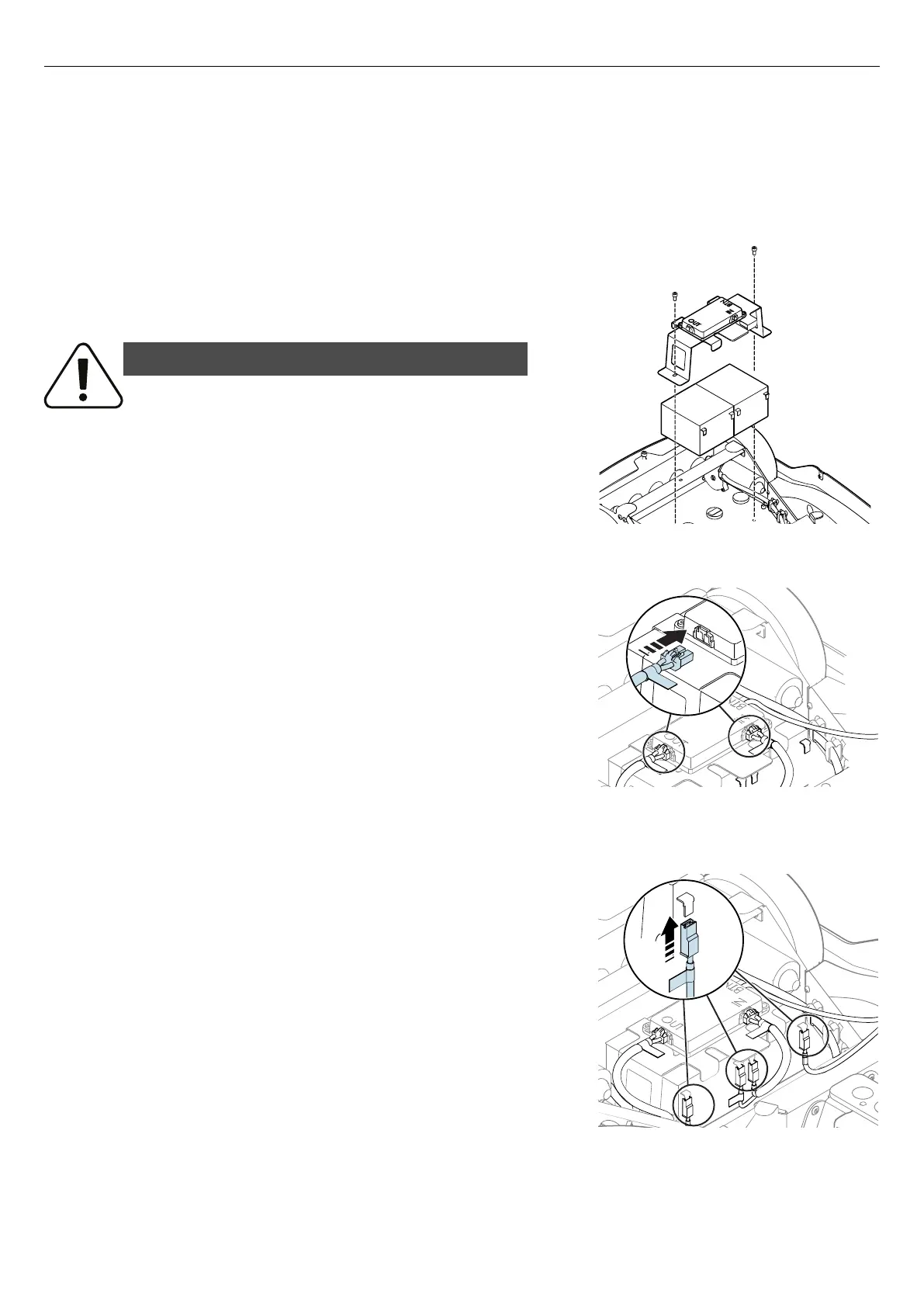

Figure 105. Put the batteries in the chassis.
1. Put the batteries in the chassis with their terminals facing the caster
wheels and attach the battery bracket, including the battery saving
module, with the two screws. Tightening torque: 4.2 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
Figure 106. Connect the cables to the battery saving
module.
2. Connect the cables to the battery saving module.
Figure 107. Connect the cables to the batteries´
terminals.
3. Connect the cables to the batteries´ terminals.
55
