Explorer Mini Repairs - Base module

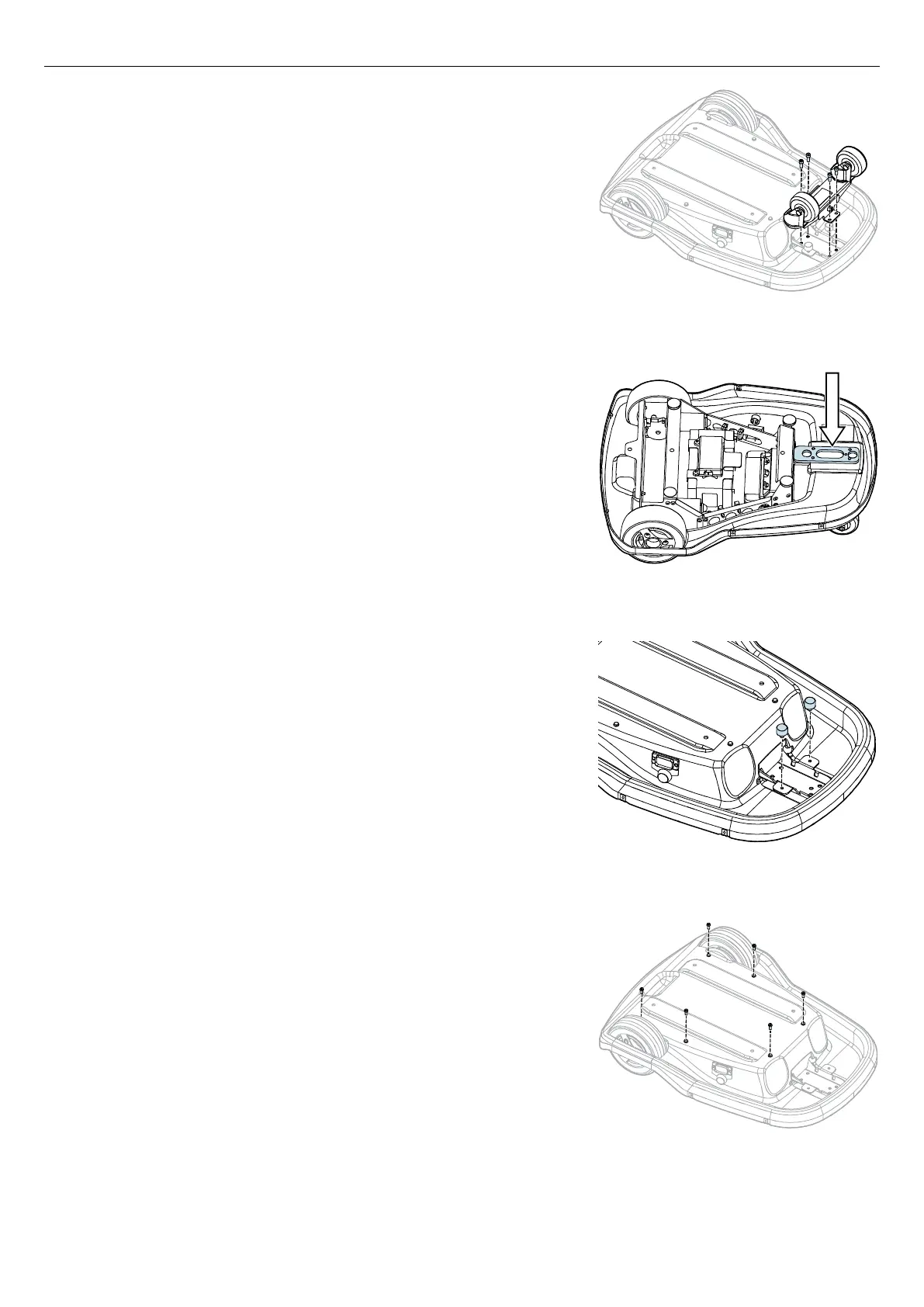

Figure 60. Remove the caster wheels assembly.
5. Remove the four screws from the caster wheels assembly and
remove the caster wheels assembly.
Figure 61. Bracket to the top cover.
The bracket to the top cover, visible when the base module is in upright
position, is also loosen.
Figure 62. Remove the two rubber dampers.
6. Remove the two rubber dampers by hand.
Figure 63. Remove the six screws from the bottom
cover.
7. Remove the six screws that attach the bottom cover to the metal
chassis.
