Permobil Explorer Mini - Page 38

Explorer Mini Repairs - Base module

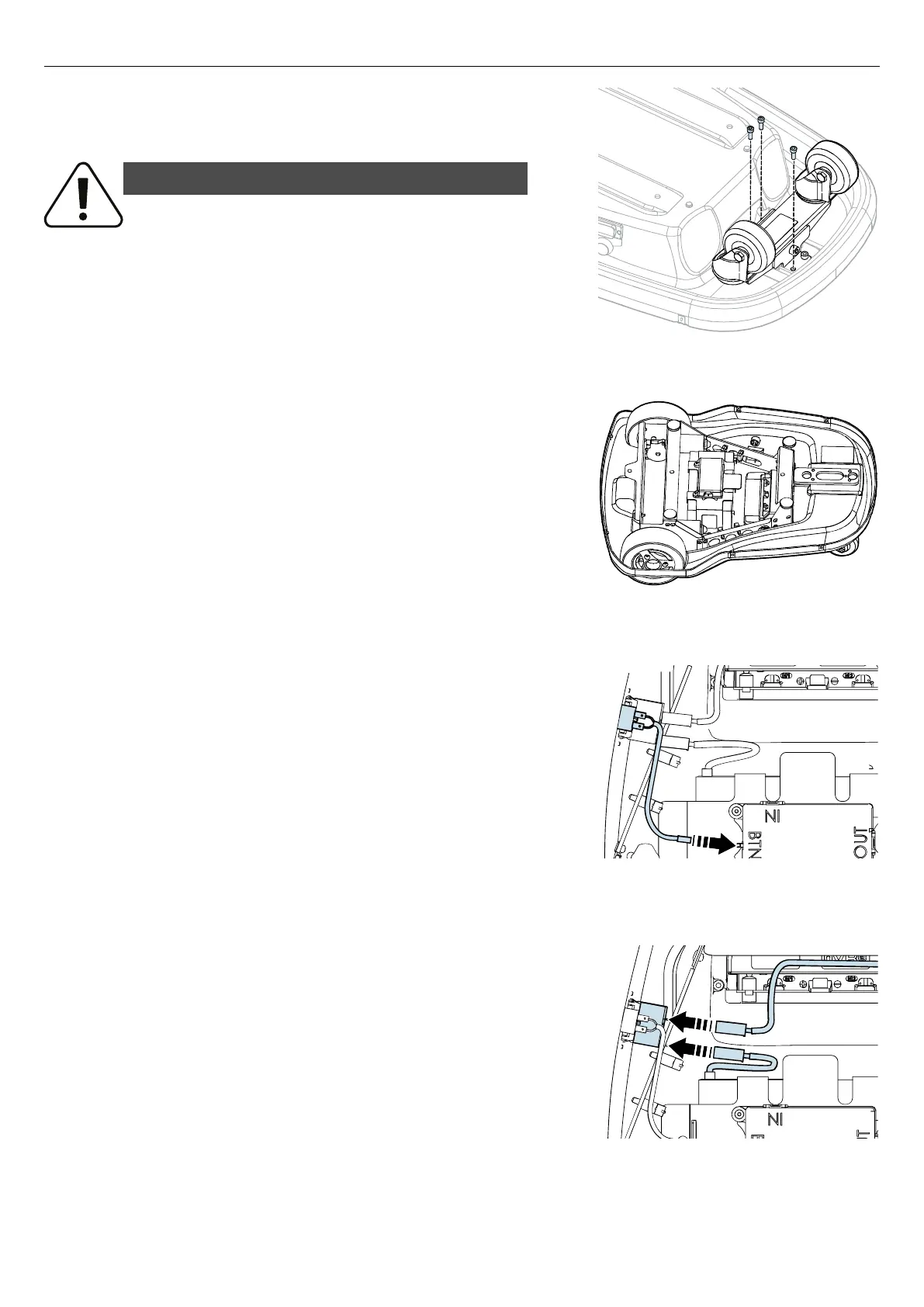

Figure 70. Attach the caster wheels assembly.
6. Attach the three screws and tighten all four screws to the caster
wheels assembly. Tightening torque: 7.2 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
Figure 71. Put the base module in upright position.
7. Put the base module in upright position.
Figure 72. Connect the cable to the battery saving
module.
8. Connect the cable from the start button to the battery saving
module.
Figure 73. Connect the cables to the main circuit
breaker.
9. Connect the cables from the batteries to the main circuit breaker.
