DA 7440 User Manual v.1.1 Aug 2015
35 (48)
8.5 External check sample
As part of factory maintenance procedures can an external check sample be measured and
continuously evaluated on the DA 7440 Instrument. Perten Check sample includes a plastic
Polystyrene (PS), Poly(1-phenylethylene) puck with a defined reflectance spectra signature. The
check sample can be continuously measured as a complement to the instrument internal testing
and Instrument – Laboratory measurements comparisons.
As a guideline - stability should be below 1% deviation. Contact your Perten instruments office
or local partner if the deviation exceeds 1%.

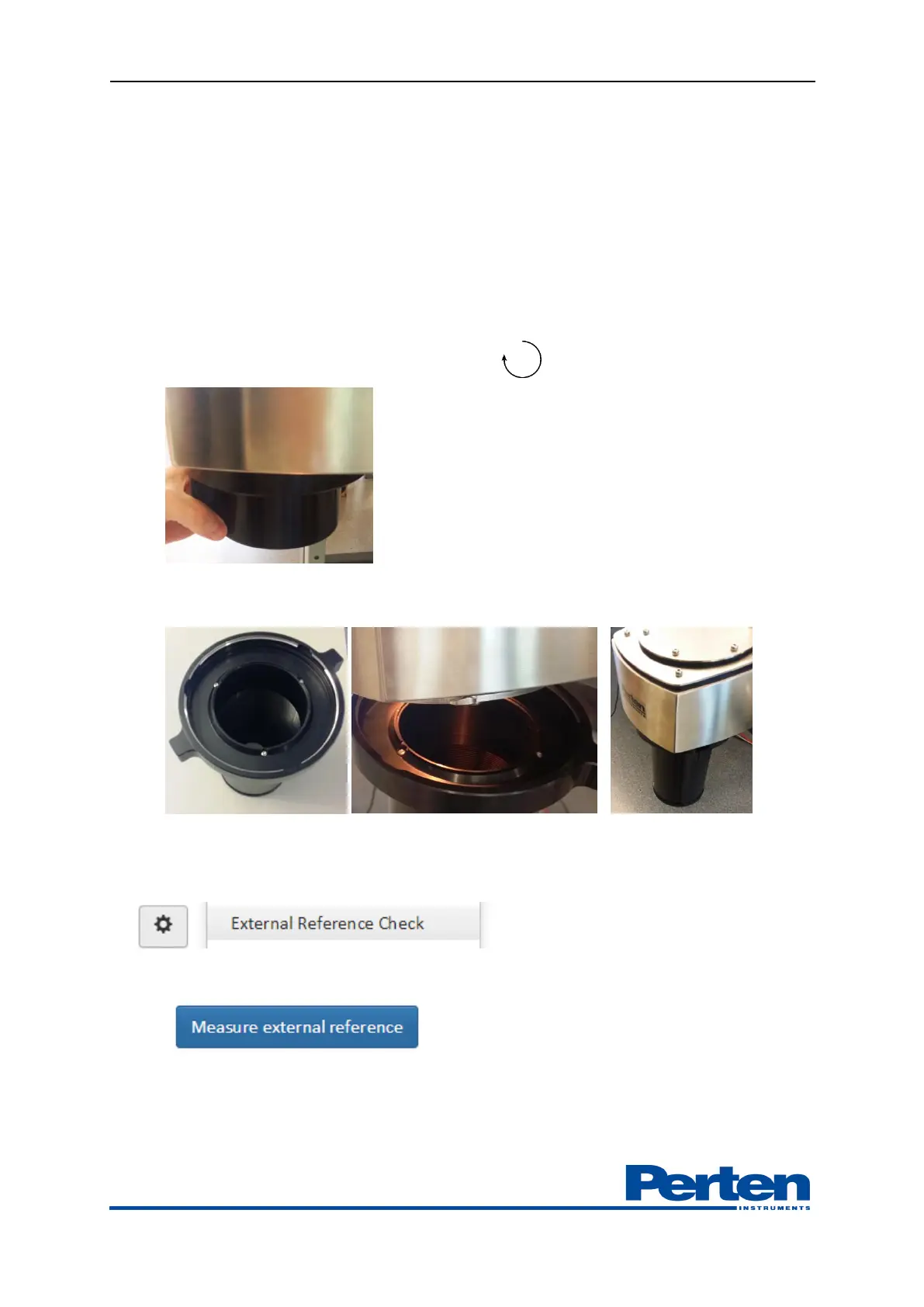

1. Remove the air purge by rotating it clockwise.
2. Attach the External check sample.
3. Select tools and settings – External Reference check in Process Plus interface.
4. Select Measure external reference. If to activate the function the first time, see point 7 below.
5. The measurement is compared to stored reference and the comparison with the current
scanned spectra to the reference spectra is expressed as Difference %.
