4.3 DA 7440 NIR Sensor

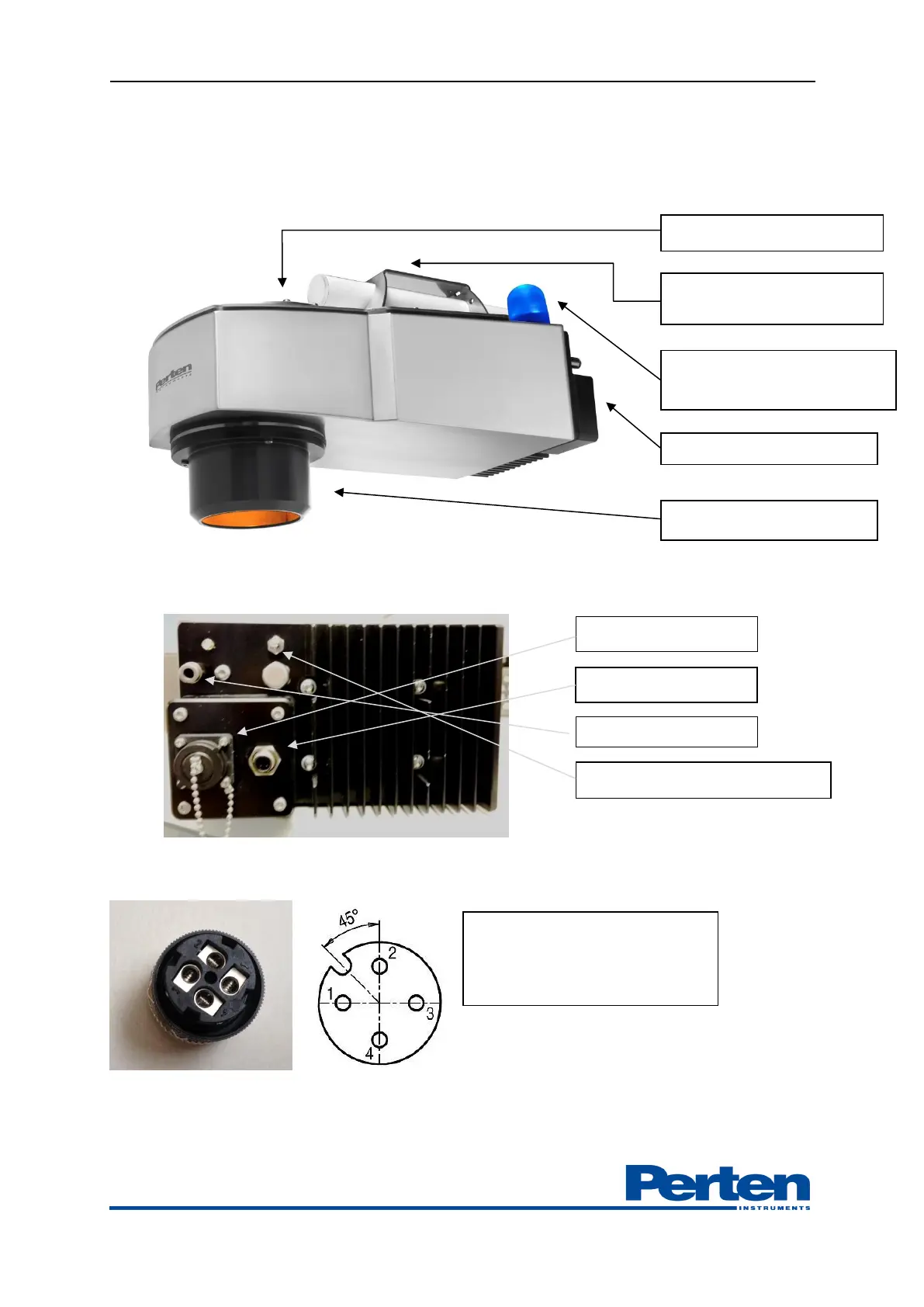

Front and rear of instrument, overview of key parts and dimensions.
Front of instrument:
Rear of instrument:
Power inlet connection:
Connecting side Face side
Removable Air purge funnel
Lid for Lamp replacement
Connection Box
Handle and holder for
mounting bar
Light tower for instrument
status indication. Wi-Fi antenna
Main power inlet
Ethernet connection
Compressed air inlet
Protective earthing connection
Pin 1 +24VDC (red)
Pin 2 - / ground (black)
Pin 3 - / ground (Brown)
Pin 4 +24VDC (orange)
