Pfaff 438 Series User Manual

4.3
Setting:
Adjustment:
4.3.1
Note:

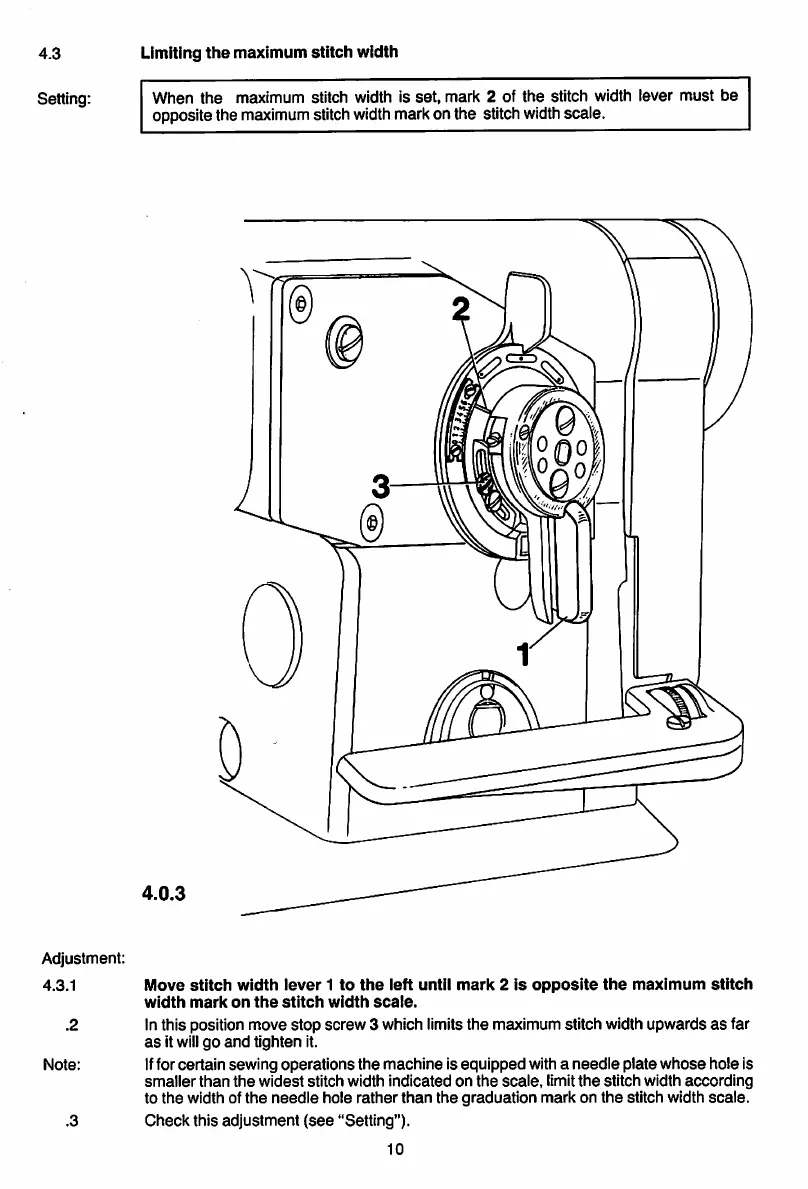

Limiting the maximum stitch width
When the maximum stitch width is set, mark 2 of the stitch width lever must be
oppositethe maximum stitch width markon the stitch width scale.
4.0.3
Move stitch width lever 1 to the left until mark 2 is opposite the maximum stitch
width mark on the stitch width scale.
In this position move stop screw 3 which limits the maximum stitch width upwards as far
as it willgo and tighten it.
Iffor certain sewing operationsthe machine is equipped with a needle plate whose hole Is
smaller than the widest stitch width indicated on the scale, limit the stitch width according
to the width of the needle hole rather than the graduation mark on the stitch width scale.
Check this adjustment (see "Setting").
10
