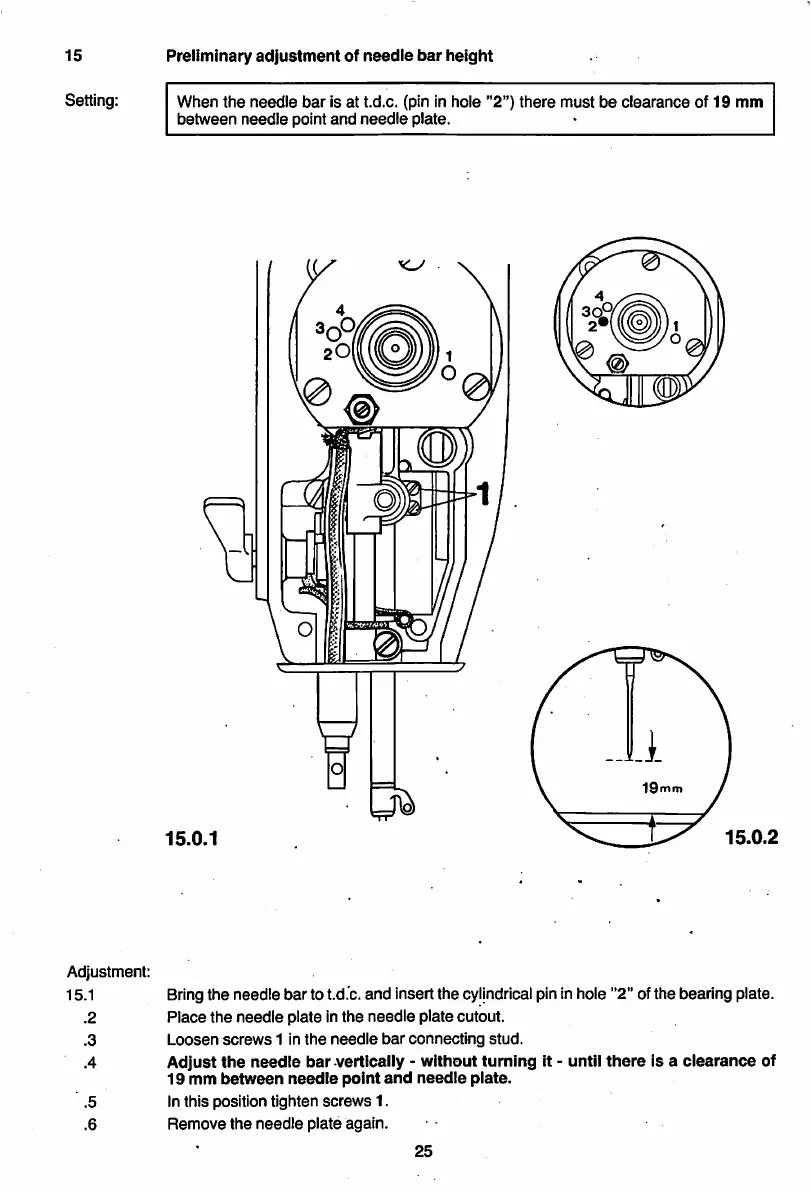

15
Setting:
Adjustment:
15.1
.2
.3
.4
.5
.6
Preliminary
adjustment
of
needle
bar
height
When
the
needle
bar
is at t.d.c. (pin in hole "2")
there
must
be
clearance
of 19
mm
between
needle point
and
needle
plate.
15.0.1
15.0.2
Bring
the needle bar to
t.d.'c.
and insert the cylindrical pininhole "2" ofthe bearing plate.
Place
the
needle
plate inthe
needle
plate cutout.
Loosen
screws
1 in
the
needle
bar
connecting
stud.
Adjust
the
needle
bar
.vertically - without
turning
it - untii
there
is a
clearance
of
19 mm
between
needle
point
and
needle
plate.
In this position tighten
screws
1.
Remove
the
needle
plate again.
25
