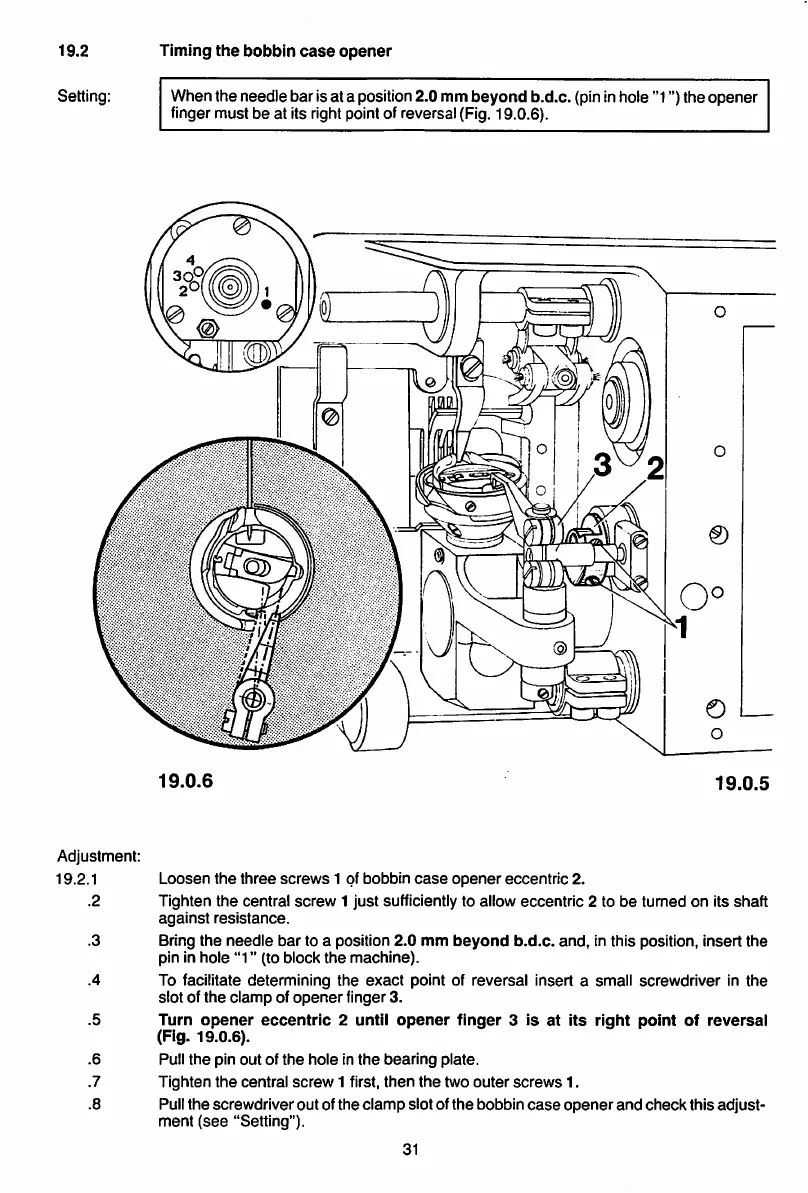

19.2
Setting:
Adjustment:
19.2.1
.2
.3
.4
Timing
the
bobbin
case
opener
When the needle bar isat a position2.0 mm
beyond
b.d.c. (pininhole "1")the opener
finger must be at its right pointof reversal (Fig. 19.0.6).
€)
O
1—
19.0.6
19.0.5
Loosen
the
three
screws
1 of bobbin
case
opener
eccentric
2.
Tighten the central
screw
1 just sufficiently to allow eccentric 2 to be turned on its shaft
against
resistance.
Bring
the
needle
bar
to a position
2.0
mm
beyond
b.d.c.
and,
in this position,
insert
the
pin in
hole
"1" (to block
the
machine).
To facilitate determining the
exact
point of reversal insert a small screwdriver in the
slot of
the
clamp
of
opener
finger 3.
Turn
opener
eccentric
2 until
opener
finger
3 is
at
its
right
point
of
reversai
(Fig. 19.0.6).
Pull
the
pin out of
the
hole
in
the
bearing
plate.
Tighten the central
screw
1 first, then the two outer
screws
1.
Pull
the
screwdriverout of
the
clamp
slot of
the
bobbin
case
opener
and
check
this
adjust
ment
(see
"Setting").
31
