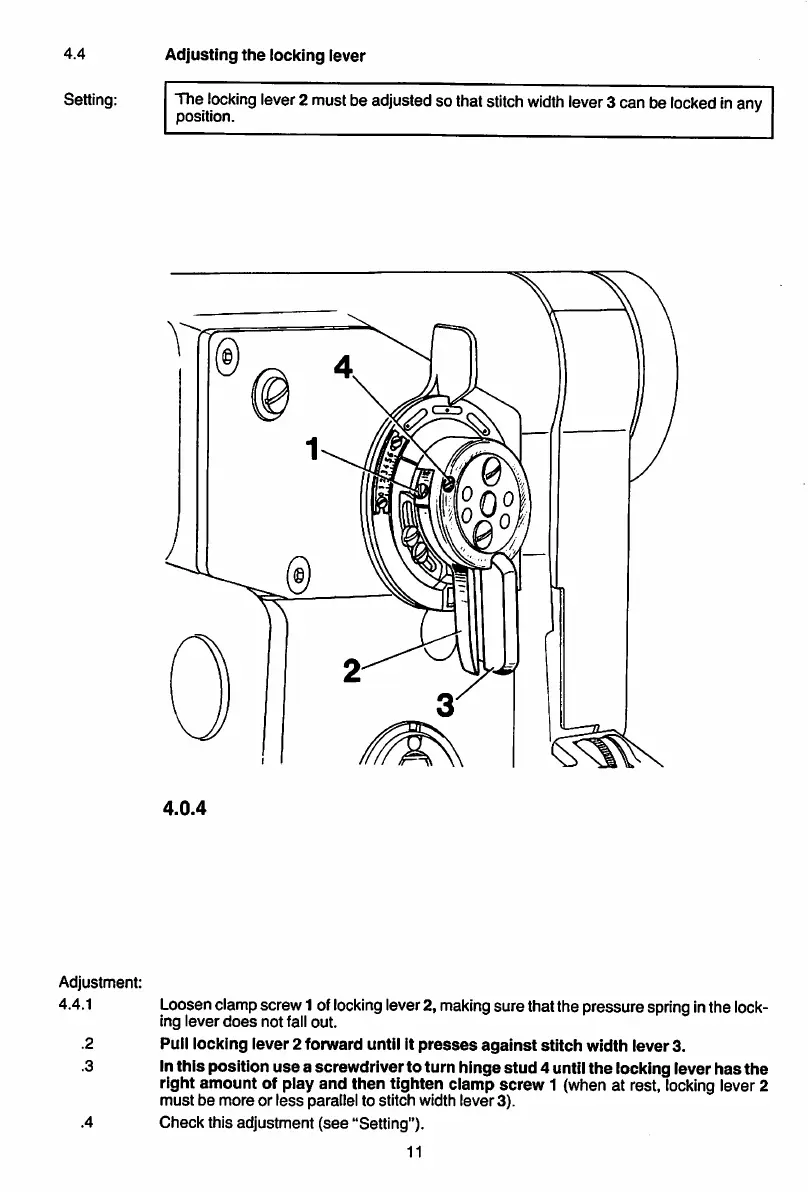

4.4
Setting:
Adjustment:
4.4.1
.2
.3
.4
Adjusting
the
locking lever
The
locking
lever
2
must
be
adjusted
sothat
stitch
width
lever
3canbe
locked
inany
position.
4.0.4
Loosenclampscrew1 of
locking
lever2,
making
sure thatthe pressurespringinthe
lock
ing
lever
does
not fall out.
Pull locking lever 2 forward until it
presses
against
stitch width lever3.
In
this
position
use
a screwdriverto turn hinge
stud
4 until
the
locking lever
has
the
right amount of play and then tighten clamp screw 1 (whenat rest,
locking
lever2
must
be
more
or
less
parallel to stitch width
lever
3).
Check this adjustment
(see
"Setting").
11
